Description and features
Our MPRYB strain relief bushing is a snap-in cable retention system with cable pre-assembly, designed to provide mechanical and electrical protection for round and flat cables. Manufactured from PA66 (Polyamide 66), it locks onto the cable with a click before final installation, reducing assembly time and installation costs.
It is installed by hand into round mounting holes or anti-rotation mounting profiles, preventing rotation of the strain relief bushing. Retaining teeth provide a secure snap-fit over a wide range of panel thicknesses. Once installed, only the low-profile head remains visible, ensuring a neat finish.
· Material: PA66 (Polyamide 66)
· Operating temperature: -18 °C to +105 °C
· Flammability: UL94-V2, self-extinguishing
· Certifications: UR, CSA
Available on request and for specific order quantities in white or other colours to sample.
Product images and technical drawings

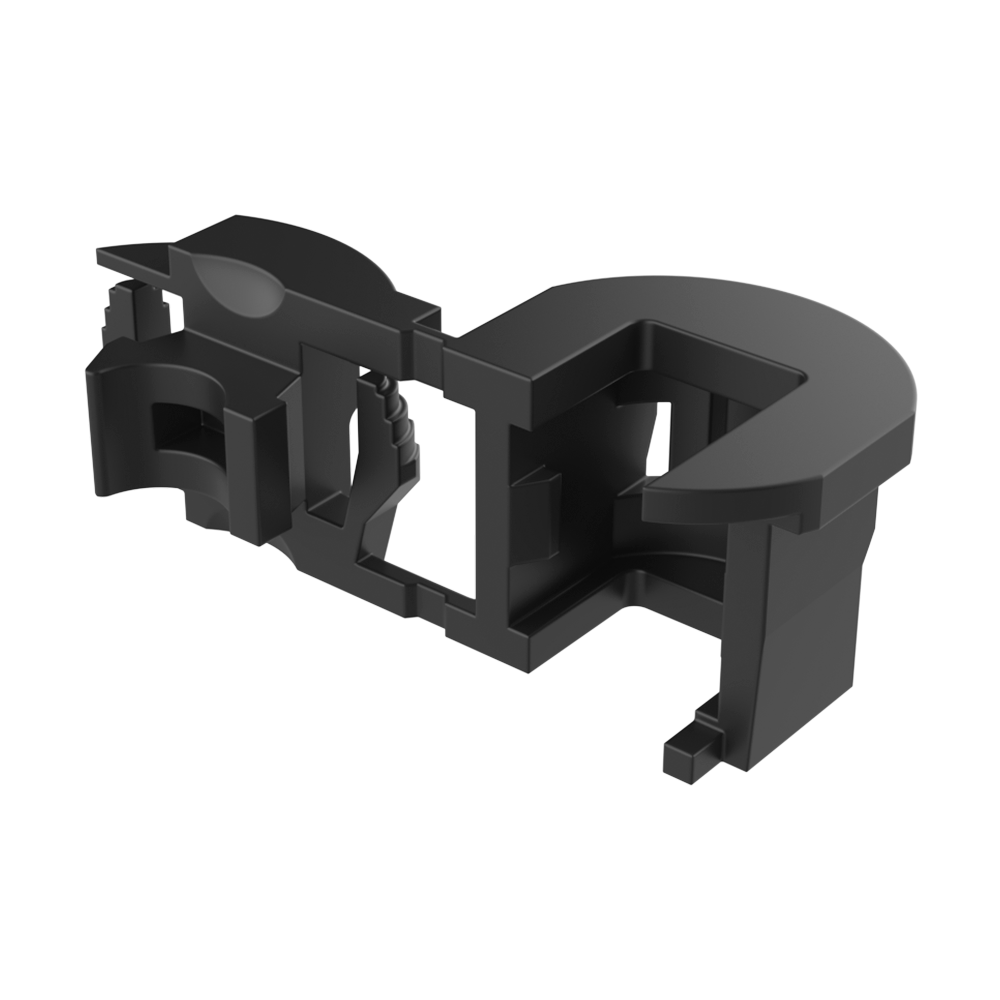

Product view

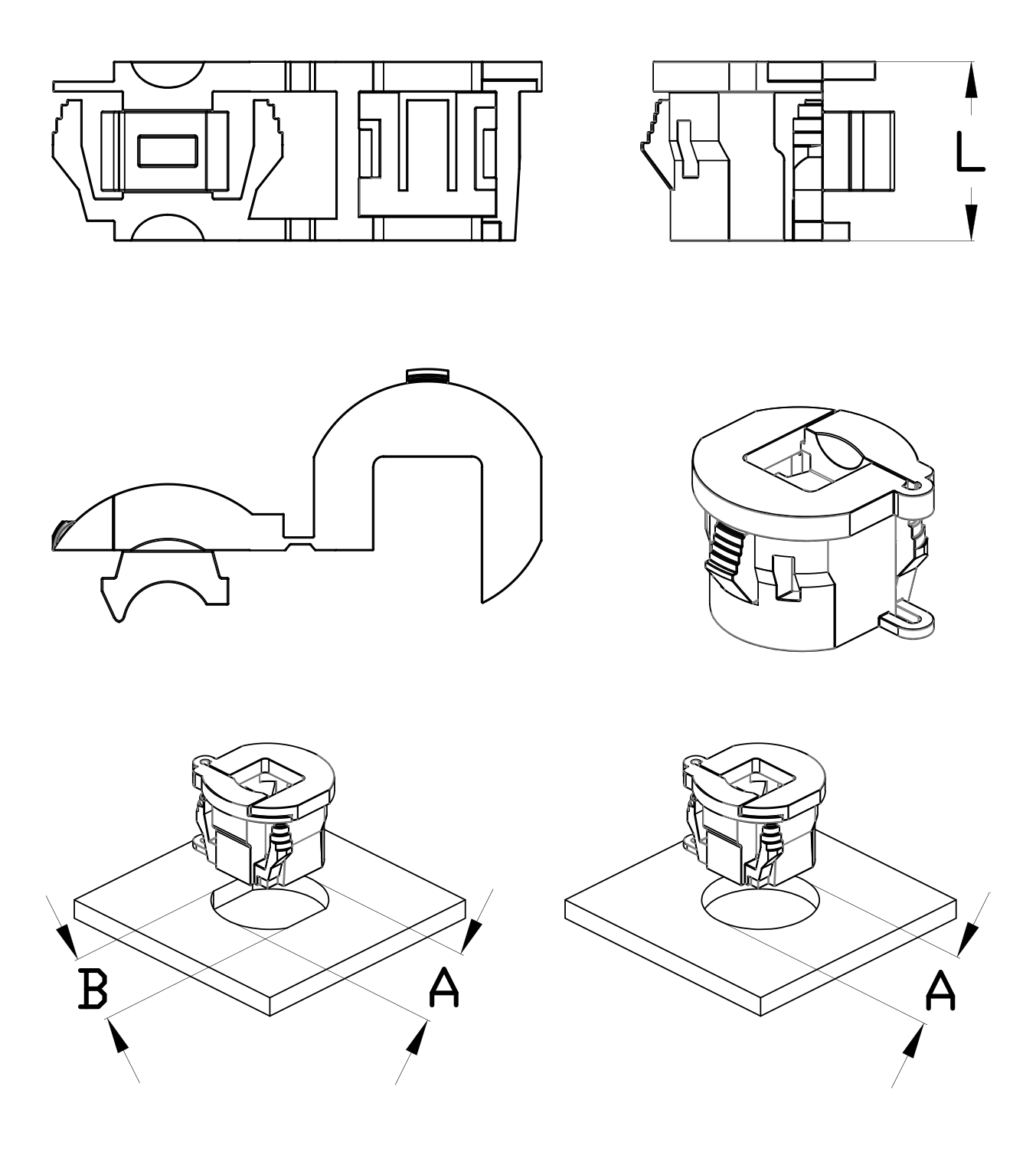

Technical drawing
Video
Part numbers and dimensions of Pre-assemblable locking strain relief bushing
| Reference | Hole (A) |
Hole (A x B) |
Panel thickness |
L |
Max. cable size |
Round cable |
Flat cable |
More Info. |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02001000965 | 15,90 | 15,90 x 14,00 | 0,80 to 2,50 | 14,00 | 3,30 to 5,30 | ||||||||
| 02001000966 | 15,90 | 15,90 x 14,00 | 0,80 to 2,50 | 14,00 | 5,60 to 7,40 | ||||||||
| 02001000967 | 15,90 | 15,90 x 14,00 | 1,60 | 15,50 | 7,60 to 8,40 | ||||||||
| 02001000968 | 22,20 | 22,20 x 19,60 | 0,80 to 4,00 | 18,30 | 7,40 to 9,80 | ||||||||
| 02001000969 | 22,20 | 22,20 x 19,60 | 2,00 to 3,40 | 18,30 | 7,40 to 9,80 | ||||||||
| 02001000970 | 22,20 | 22,20 x 19,60 | 0,80 to 4,00 | 18,30 | 8,60 to 10,90 | ||||||||
| 02001000971 | 22,20 | 22,20 x 19,60 | 2,00 to 3,40 | 18,30 | 8,60 to 10,90 | ||||||||
| 02001000972 | 22,20 | 22,20 x 19,60 | 0,80 to 4,00 | 18,30 | 10,70 to 11,40 | ||||||||
| 02001000973 | 22,20 | 22,20 x 19,60 | 2,00 to 3,40 | 18,30 | 10,70 to 11,40 | ||||||||
| 02001000974 | 28,20 | 28,20 x 25,40 | 1,60 to 4,80 | 23,40 | 13,50 to 15,20 | ||||||||
| 02001000975 | 28,20 | 28,20 x 25,40 | 1,60 to 4,80 | 31,80 | 15,20 to 17,80 | ||||||||
| 02001000976 | 31,80 | 31,80 x 28,60 | 1,60 to 4,80 | 33,30 | 18,30 to 21,10 | ||||||||
| 02001000977 | 15,90 | 15,90 x 14,00 | 0,80 to 2,50 | 14,00 | 2,90 x 8,00 | ||||||||
| 02001000978 | 15,90 | 15,90 x 14,00 | 0,80 to 2,50 | 14,00 | 4,10 x 8,00 | ||||||||
| 02001000979 | 22,20 | 22,20 x 19,60 | 0,80 to 4,00 | 18,30 | 6,10 x 10,90 | ||||||||
| 02001000980 | 22,20 | 22,20 x 19,60 | 2,00 to 3,40 | 18,30 | 6,10 x 10,90 | ||||||||
| 02001000981 | 28,20 | 28,20 x 25,40 | 1,60 to 4,80 | 23,40 | 6,10 x 10,90 |
