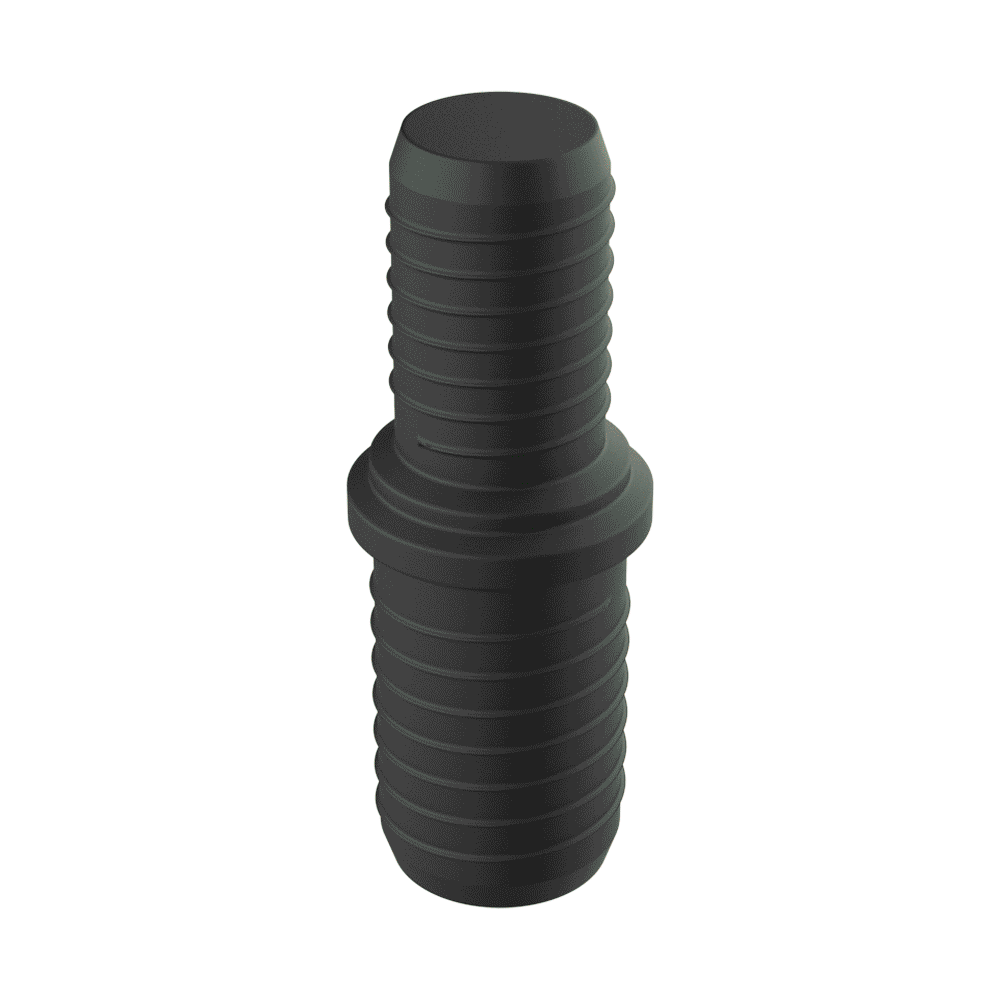

Our parallel high-temperature plug protects threaded or unthreaded hole during coating processes which need to resist to high temperature up to 315°C. We recommend you use silicone (315ºC) for items that are to be powder coated, e-coated, or plated. We recommend you use EPDM (177ºC) for items that are to be painted, plated, anodised and spray-enamelled. We recommend you test the product before, please ask for samples.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Suitable for (M1)
Suitable for (M2)
A
B



More
Info.
02100100731 M4 M5 5,60 6,40
02100100732 M6 M8 8,00 10,00
02100100733 M10 M12 12,00 14,00
02100100734 M14 M16 16,00 16,00
02100100735 M18 M20 20,00 20,00
