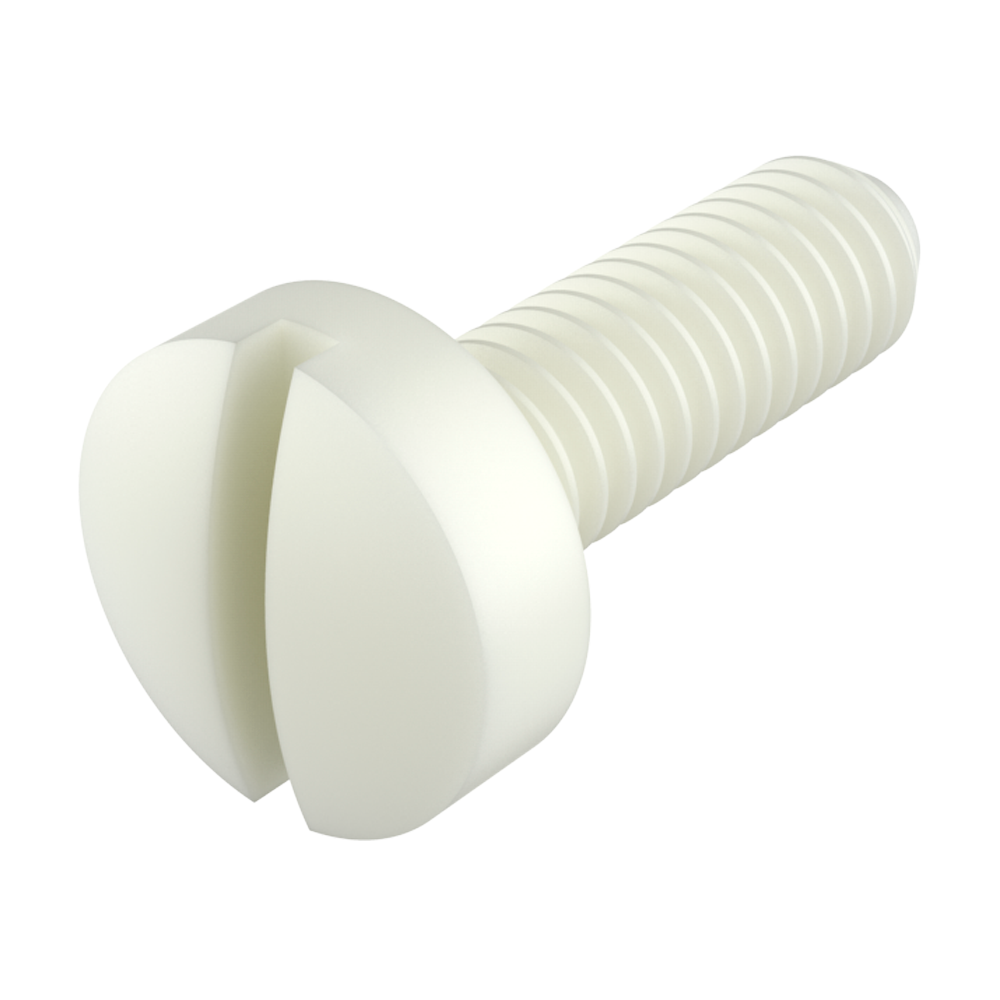

Our nylon pan slotted head screws (DIN 85 screws) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress. We offer some sizes of screws (1/4-20) manufactured in PC (polycarbonate) transparent.

Material:  PA66   PC
Standard colors: Natural - Black - Transparent
Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Thread
L
A
H
J
T
Type

PDF
3D IGS
Add
00100101277 M2 x 0,40 3,00 3,85 1,20 0,60 0,50 M
00100100187 M2 x 0,40 4,00 3,85 1,20 0,60 0,50 M
00100100188 M2 x 0,40 5,00 3,85 1,20 0,60 0,50 M
00100100189 M2 x 0,40 6,00 3,85 1,20 0,60 0,50 M
00100100190 M2 x 0,40 8,00 3,85 1,20 0,60 0,50 M
00100100191 M2 x 0,40 10,00 3,85 1,20 0,60 0,50 M
00100100192 M2 x 0,40 12,00 3,85 1,20 0,60 0,50 M
00100100193 M2 x 0,40 16,00 3,85 1,20 0,60 0,50 M
00100100194 M2 x 0,40 20,00 3,85 1,20 0,60 0,50 M
00100100195 M2 x 0,40 25,00 3,85 1,20 0,60 0,50 M
00100100196 M2,5 x 0,45 4,00 4,85 1,40 0,70 0,60 M
00100100197 M2,5 x 0,45 5,00 4,85 1,40 0,70 0,60 M
00100100198 M2,5 x 0,45 6,00 4,85 1,40 0,70 0,60 M
00100100199 M2,5 x 0,45 8,00 4,85 1,40 0,70 0,60 M
00100100200 M2,5 x 0,45 10,00 4,85 1,40 0,70 0,60 M
00100100201 M2,5 x 0,45 12,00 4,85 1,40 0,70 0,60 M
00100100202 M2,5 x 0,45 16,00 4,85 1,40 0,70 0,60 M
00100100203 M2,5 x 0,45 20,00 4,85 1,40 0,70 0,60 M
00100100204 M2,5 x 0,45 25,00 4,85 1,40 0,70 0,60 M
01000100041 M3 x 0,50 3,00 6,00 1,80 0,80 0,80 M
00100100205 M3 x 0,50 4,00 5,45 1,70 0,90 0,70 M
00100100206 M3 x 0,50 5,00 5,45 1,70 0,90 0,70 M
00100100207 M3 x 0,50 6,00 5,45 1,70 0,90 0,70 M
00100100208 M3 x 0,50 8,00 5,45 1,70 0,90 0,70 M
00100100209 M3 x 0,50 10,00 5,45 1,70 0,90 0,70 M
00100100210 M3 x 0,50 12,00 5,45 1,70 0,90 0,70 M
00100100211 M3 x 0,50 16,00 5,45 1,70 0,90 0,70 M
00100100212 M3 x 0,50 20,00 5,45 1,70 0,90 0,70 M
00100100213 M3 x 0,50 25,00 5,45 1,70 0,90 0,70 M
00100100214 M3 x 0,50 30,00 5,45 1,70 0,90 0,70 M
00100100215 M3 x 0,50 35,00 5,45 1,70 0,90 0,70 M
00100100216 M3 x 0,50 42,00 5,45 1,70 0,90 0,70 M
00100100217 M3,5 x 0,60 5,00 6,80 2,00 1,10 0,80 M
00100100218 M3,5 x 0,60 6,00 6,80 2,00 1,10 0,80 M
00100100219 M3,5 x 0,60 7,00 6,80 2,00 1,10 0,80 M
00100100220 M3,5 x 0,60 8,00 6,80 2,00 1,10 0,80 M
00100100221 M3,5 x 0,60 10,00 6,80 2,00 1,10 0,80 M
00100100222 M3,5 x 0,60 12,00 6,80 2,00 1,10 0,80 M
00100100223 M3,5 x 0,60 16,00 6,80 2,00 1,10 0,80 M
00100100224 M3,5 x 0,60 20,00 6,80 2,00 1,10 0,80 M
00100100225 M3,5 x 0,60 25,00 6,80 2,00 1,10 0,80 M
00100100226 M3,5 x 0,60 35,00 6,80 2,00 1,10 0,80 M
00100100227 M3,5 x 0,60 42,00 6,80 2,00 1,10 0,80 M
00100100228 M4 x 0,70 3,00 7,80 2,30 1,35 1,00 M
01000100042 M4 x 0,70 5,00 8,00 2,40 1,30 1,15 M
00100100229 M4 x 0,70 6,00 7,80 2,30 1,35 1,00 M
00100100230 M4 x 0,70 8,00 7,80 2,30 1,35 1,00 M
00100100231 M4 x 0,70 10,00 7,80 2,30 1,35 1,00 M
00100100232 M4 x 0,70 12,00 7,80 2,30 1,35 1,00 M
00100100233 M4 x 0,70 16,00 7,80 2,30 1,35 1,00 M
00100100234 M4 x 0,70 20,00 7,80 2,30 1,35 1,00 M
00100100235 M4 x 0,70 25,00 7,80 2,30 1,35 1,00 M
00100100236 M4 x 0,70 30,00 7,80 2,30 1,35 1,00 M
00100100237 M4 x 0,70 35,00 7,80 2,30 1,35 1,00 M
00100100238 M4 x 0,70 40,00 7,80 2,30 1,35 1,00 M
00100100239 M5 x 0,80 6,00 9,30 2,85 1,35 1,20 M
00100100240 M5 x 0,80 8,00 9,30 2,85 1,35 1,20 M
00100100241 M5 x 0,80 10,00 9,30 2,85 1,35 1,20 M
00100100242 M5 x 0,80 12,00 9,30 2,85 1,35 1,20 M
00100100243 M5 x 0,80 15,00 9,30 2,85 1,35 1,20 M
00100100244 M5 x 0,80 16,00 9,30 2,85 1,35 1,20 M
00100100245 M5 x 0,80 20,00 9,30 2,85 1,35 1,20 M
00100100246 M5 x 0,80 25,00 9,30 2,85 1,35 1,20 M
00100100247 M5 x 0,80 30,00 9,30 2,85 1,35 1,20 M
00100100248 M5 x 0,80 35,00 9,30 2,85 1,35 1,20 M
00100100249 M5 x 0,80 40,00 9,30 2,85 1,35 1,20 M
01000100043 M5 x 0,80 45,00 10,00 3,00 1,40 1,35 M
00100100250 M6 x 1,00 5,00 11,75 3,45 1,75 1,40 M
00100100251 M6 x 1,00 8,00 11,75 3,45 1,75 1,40 M
00100100252 M6 x 1,00 10,00 11,75 3,45 1,75 1,40 M
00100100253 M6 x 1,00 12,00 11,75 3,45 1,75 1,40 M
00100100254 M6 x 1,00 16,00 11,75 3,45 1,75 1,40 M
00100100255 M6 x 1,00 20,00 11,75 3,45 1,75 1,40 M
00100100256 M6 x 1,00 22,00 11,75 3,45 1,75 1,40 M
00100100257 M6 x 1,00 25,00 11,75 3,45 1,75 1,40 M
00100100258 M6 x 1,00 30,00 11,75 3,45 1,75 1,40 M
00100100259 M6 x 1,00 35,00 11,75 3,45 1,75 1,40 M
00100100260 M6 x 1,00 40,00 11,75 3,45 1,75 1,40 M
00100100261 M6 x 1,00 45,00 11,75 3,45 1,75 1,40 M
00100100262 M6 x 1,00 50,00 11,75 3,45 1,75 1,40 M
00100100263 M6 x 1,00 60,00 11,75 3,45 1,75 1,40 M
00100100264 M6 x 1,00 70,00 11,75 3,45 1,75 1,40 M
00100100265 M6 x 1,00 75,00 11,75 3,45 1,75 1,40 M
00100100266 M8 x 1,25 10,00 15,75 4,65 2,15 1,90 M
00100100267 M8 x 1,25 16,00 15,75 4,65 2,15 1,90 M
00100100268 M8 x 1,25 20,00 15,75 4,65 2,15 1,90 M
00100100269 M8 x 1,25 25,00 15,75 4,65 2,15 1,90 M
00100100270 M8 x 1,25 30,00 15,75 4,65 2,15 1,90 M
00100100271 M8 x 1,25 35,00 15,75 4,65 2,15 1,90 M
00100100272 M8 x 1,25 50,00 15,75 4,65 2,15 1,90 M
01000100044 M8 x 1,25 60,00 16,00 4,80 2,10 2,20 M
00100100273 M8 x 1,25 70,00 15,75 4,65 2,15 1,90 M
00100100274 M10 x 1,50 13,00 19,70 5,85 2,65 2,40 M
00100100275 M10 x 1,50 16,00 19,70 5,85 2,65 2,40 M
00100100276 M10 x 1,50 19,00 19,70 5,85 2,65 2,40 M
00100100277 M10 x 1,50 20,00 19,70 5,85 2,65 2,40 M
00100100278 M10 x 1,50 25,00 19,70 5,85 2,65 2,40 M
00100100279 M10 x 1,50 30,00 19,70 5,85 2,65 2,40 M
00100100280 M10 x 1,50 35,00 19,70 5,85 2,65 2,40 M
00100100281 M10 x 1,50 50,00 19,70 5,85 2,65 2,40 M
00100100282 M10 x 1,50 60,00 19,70 5,85 2,65 2,40 M
