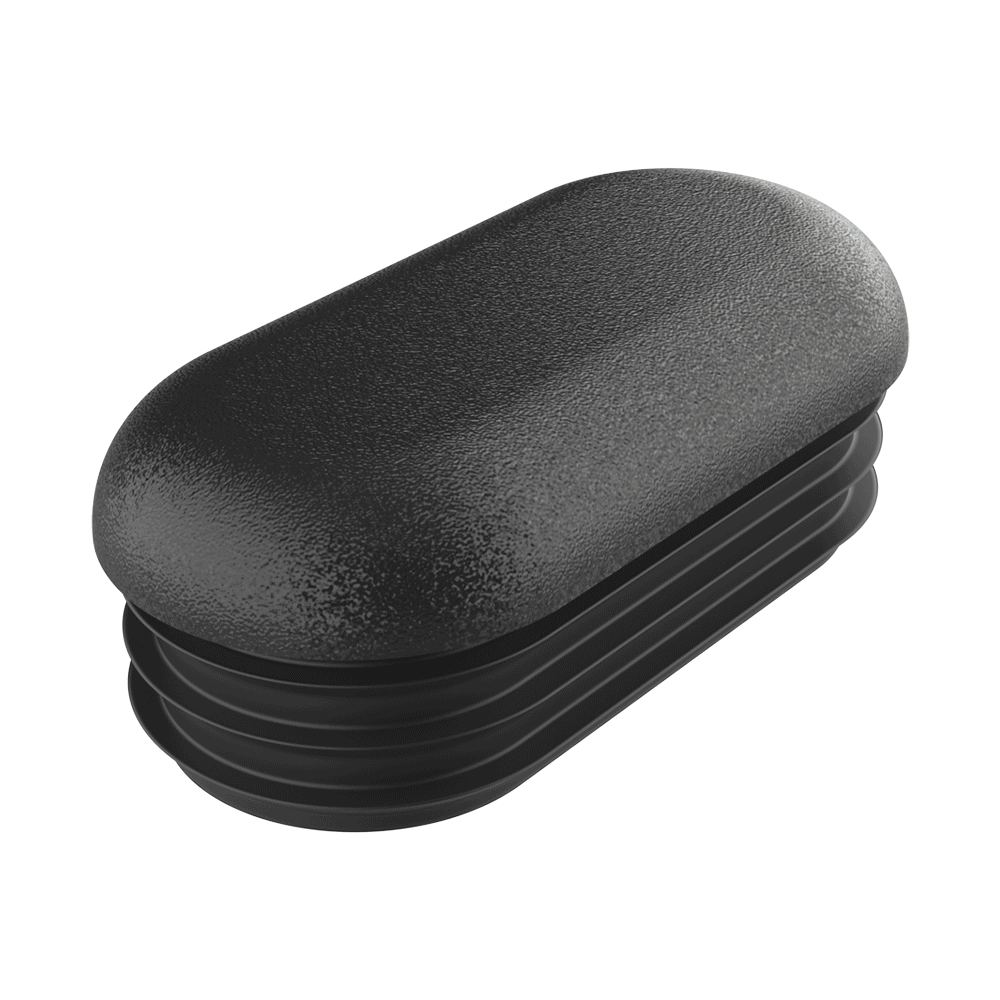

Our standard ribbed insert for oval tubes is available in multiple sizes. It is also available for square tubes: LE, rectangular tubes: LF, triangular tubes: LFD and octogonal tubes: SLJLO.

RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube	Tube Thickness	H	L	Felt base								More Info.

00300400166	20 x 10	1,50	3,00	10,50
00700800590	20 x 10	0,75 to 2,00	3,00	11,50
00700800592	25 x 10	0,80 to 2,00	3,00	11,50
00300400167	25 x 12	1,50	3,20	10,25
00700800593	30 x 10	0,80 to 2,00	3,00	11,50
00300400168	30 x 15	1,50	2,90	16,00
00300400169	30 x 15	1,50 to 2,50	2,90	9,70
00700800595	30 x 15	1,00 to 2,50	5,00	11,50
00300400989	30 x 20	1,50	3,90	10,90
00300400170	35 x 15	1,20 to 2,50	4,90	11,70
00700800594	35 x 15	0,80 to 2,50	5,50	11,50
00300400171	35 x 20	1,50	5,30	10,90
00700800596	35 x 20	1,00 to 3,00	5,00	11,50
00300400172	38 x 20	1,50	4,90	11,30
00700800598	38 x 20	1,00 to 3,00	5,00	11,50
00700800597	38,1 x 19,1	0,80 to 2,00	5,00	11,50
00300400173	40 x 20	1,50	4,80	11,50
00300400174	40 x 20	2,50	3,10	11,80
00700800599	40 x 20	0,80 to 3,00	5,00	11,50
00700800600	40 x 25	1,00 to 3,00	5,00	11,50
00700800601	45 x 18	1,50 to 3,00	5,00	11,50
00700800602	45 x 20	1,50 to 3,00	5,00	11,50
00300400175	48 x 20	1,50	4,80	11,50
00700800603	48 x 20	1,00 to 2,50	5,00	11,50
00700800604	50 x 15	1,00 to 2,50	4,90	11,50
00300400176	50 x 20	1,50	4,80	11,50
00700800605	50 x 20	1,00 to 3,00	5,00	11,50
00700800606	50 x 25	1,00 to 3,00	5,00	11,50
00300400178	50 x 30	1,50	5,00	11,50
00700800608	50 x 30	1,00 to 3,00	3,00	11,50
00300400179	60 x 20	1,50	4,90	13,80
00700800609	60 x 20	0,80 to 2,50	3,00	14,00
00700800610	60 x 25	1,50 to 3,00	3,00	13,00
00300400180	60 x 30	1,50	4,70	13,50
00700800611	70 x 40	1,50 to 3,00	3,00	14,50
00300410105	80 x 25	1,20 to 2,50	5,00	14,50
00700800612	80 x 40	1,20 to 3,00	5,00	14,50
