Description and features

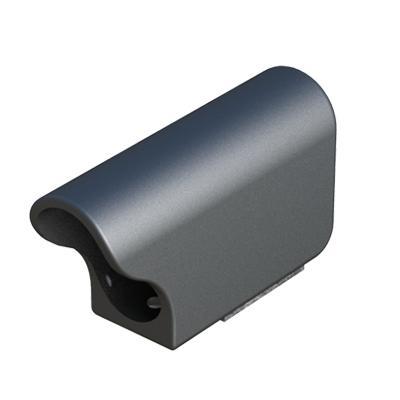

Our external ferrule has been designed for oval traverse ends.
the following references are also available in environment friendly materials. Contact our Commercial Office for more information.Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of Oval ferrule for end of traverses
| Reference | For Tube (AxB) |
H |
L |
d |
More Info. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00300400309 | 30 x 15 | 60,00 | 52,00 | 2,70 | |||||||||
| 00300400310 | 35 x 20 | 60,00 | 52,00 | 2,70 | |||||||||
| 00300400311 | 38 x 20 | 60,00 | 52,00 | 2,70 | |||||||||
| 00300400312 | 40 x 20 | 60,00 | 52,00 | 2,70 | |||||||||
| 00300400313 | 50 x 20 | 70,00 | 60,00 | 2,70 to 5,00 | |||||||||
| 00300400314 | 50 x 25 | 70,00 | 60,00 | 2,70 to 5,00 | |||||||||
| 00300400315 | 50 x 30 | 70,00 | 60,00 | 2,70 to 5,00 | |||||||||
| 00300400316 | 60 x 30 | 70,00 | 60,00 | 2,70 to 5,00 |
