Metric reducers for cable glands

Products

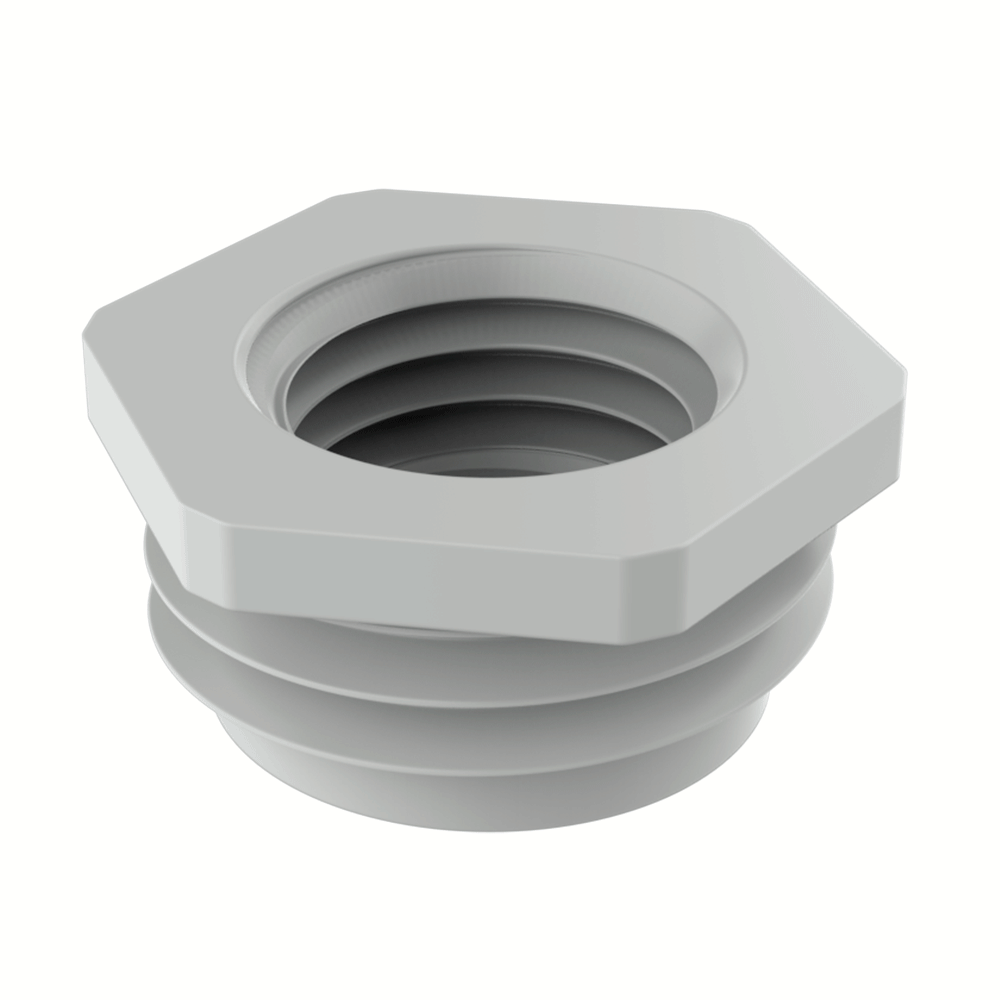

Hexagonal reducers made of polyamide 6 reinforced with glass fiber (25%), available in light gray RAL 7035, dark gray RAL 7001 and black RAL 9005.

Designed to allow the assembly of a cable gland in holes with a diameter larger than its thread. Thanks to their very compact dimensions, they are ideal in space-limited applications.

Operating temperature: -30 °C to +120 °C

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	M1	M 2	SW	L1	L2	H							More Info.

02010000500	M16	M12	20,00	3,00	8,00	8,00
02010000501	M20	M12	20,00	3,00	9,00	8,00
02010000502	M20	M16	24,00	3,00	9,00	8,00
02010000503	M25	M12	30,00	3,50	10,00	9,00
02010000504	M25	M16	30,00	3,50	10,00	9,00
02010000505	M25	M20	30,00	3,50	10,00	9,00
02010000506	M32	M12	36,00	3,50	10,00	9,00
02010000507	M32	M16	36,00	4,00	11,00	9,00
02010000508	M32	M20	36,00	4,00	11,00	9,00
02010000509	M32	M25	36,00	4,00	11,00	9,00
02010000510	M40	M16	46,00	6,00	10,00	11,00
02010000511	M40	M20	44,00	4,00	12,00	11,00
02010000512	M40	M25	44,00	4,00	12,00	11,00
02010000513	M40	M32	44,00	4,00	12,00	11,00
02010000514	M50	M20	55,00	6,00	12,00	12,00
02010000515	M50	M25	55,00	5,00	13,00	12,00
02010000516	M50	M32	55,00	5,00	13,00	12,00
02010000517	M50	M40	55,00	5,00	13,00	12,00
02010000518	M63	M25	68,00	6,00	12,00	13,00
02010000519	M63	M32	70,00	6,00	15,00	13,00
02010000520	M63	M40	70,00	6,00	15,00	13,00
02010000521	M63	M50	70,00	6,00	15,00	13,00
