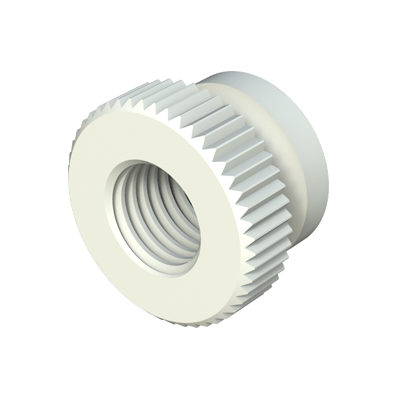

Our nylon knurled thumb nuts provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.
  Possible to get dyed colors

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MTCG-A
MTCG-A

Reference
Suitable for
A
B
C
Type



More
Info.
00100402287 4 · 40 7,62 7,11 3,05 UNC
00100402287 4 · 40 7,62 7,11 3,05 UNC
00100402288 6 · 32 9,14 6,99 3,18 UNC
00100402288 6 · 32 9,14 6,99 3,18 UNC
00100402289 8 · 32 10,80 7,75 3,56 UNC
00100402289 8 · 32 10,80 7,75 3,56 UNC
00100402290 10 · 24 10,80 8,26 3,56 UNC
00100402290 10 · 24 10,80 8,26 3,56 UNC
00100402291 10 · 32 10,80 8,26 3,56 UNF
00100402291 10 · 32 10,80 8,26 3,56 UNF
00100402292 1/4 · 20 13,72 9,27 3,94 UNC
00100402292 1/4 · 20 13,72 9,27 3,94 UNC
00100402293 5/16 · 18 15,62 9,78 4,34 UNC
00100402293 5/16 · 18 15,62 9,78 4,34 UNC
00100402294 3/8 · 16 17,45 10,92 4,75 UNC
00100402294 3/8 · 16 17,45 10,92 4,75 UNC
00100402295 1/2 · 13 19,05 11,89 5,16 UNC
00100402295 1/2 · 13 19,05 11,89 5,16 UNC

If you are interested in our family MTCG-A, you may be interested in these families as well:

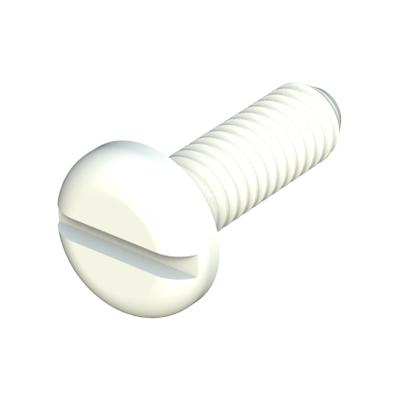

Our nylon hexagonal head screws (DIN 933 screws) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.   Our nylon pan slotted head screws (DIN 85 screws) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress. We offer some sizes of screws (1/4-20) manufactured in PC (polycarbonate) transparent.   Our nylon threaded rods (similar DIN 975 rods) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress. They are also available in PVC (UNC/UNF threads).   <p>Our flanged washers <strong>TI</strong>, made of <strong>PA66</strong>, are designed to offer excellent mechanical, electrical, and thermal performance in demanding industrial applications.</p> <h4>PA66 Properties</h4> <ul style='margin-left:20px'> <li><strong>Thermal resistance:</strong> continuous use up to 100–110 °C</li> <li><strong>Mechanical strength:</strong> high rigidity, hardness, and dimensional stability</li> <li><strong>Electrical insulation:</strong> excellent dielectric behavior</li> <li><strong>Chemical resistance:</strong> good resistance to oils, greases, hydrocarbons, and common solvents</li> <li><strong>Durability:</strong> high wear resistance, low friction, and good aging resistance</li> </ul> <p><strong>PA66</strong> is a technical polyamide ideal for structural components that must be lightweight yet strong, with electrical insulation and reliable performance under thermal and chemical stress.</p>   <p>Our <strong>TU</strong> washers are available in <strong>LDPE</strong>, <strong>PA6</strong>, <strong>PA66</strong>, and <strong>PA6GF30</strong>, offering lightweight, insulating, and durable solutions for various industrial sectors.</p> <h4>Materials and properties</h4> <ul style='margin-left:20px'> <li><strong>LDPE:</strong> up to 70 °C, flexible, insulating, resistant to mild agents.</li> <li><strong>PA6:</strong> up to 100 °C, good strength and thermal balance.</li> <li><strong>PA66:</strong> greater rigidity and dimensional stability.</li> <li><strong>PA6GF30:</strong> 30% glass fiber reinforced, excellent stiffness and heat resistance up to 130 °C.</li> </ul> <p>All materials provide good electrical insulation and chemical resistance to oils, greases, and common solvents. Ideal for electrical, mechanical, and insulation applications.</p>   Our nylon knurled thumb nuts provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.
