Description and features

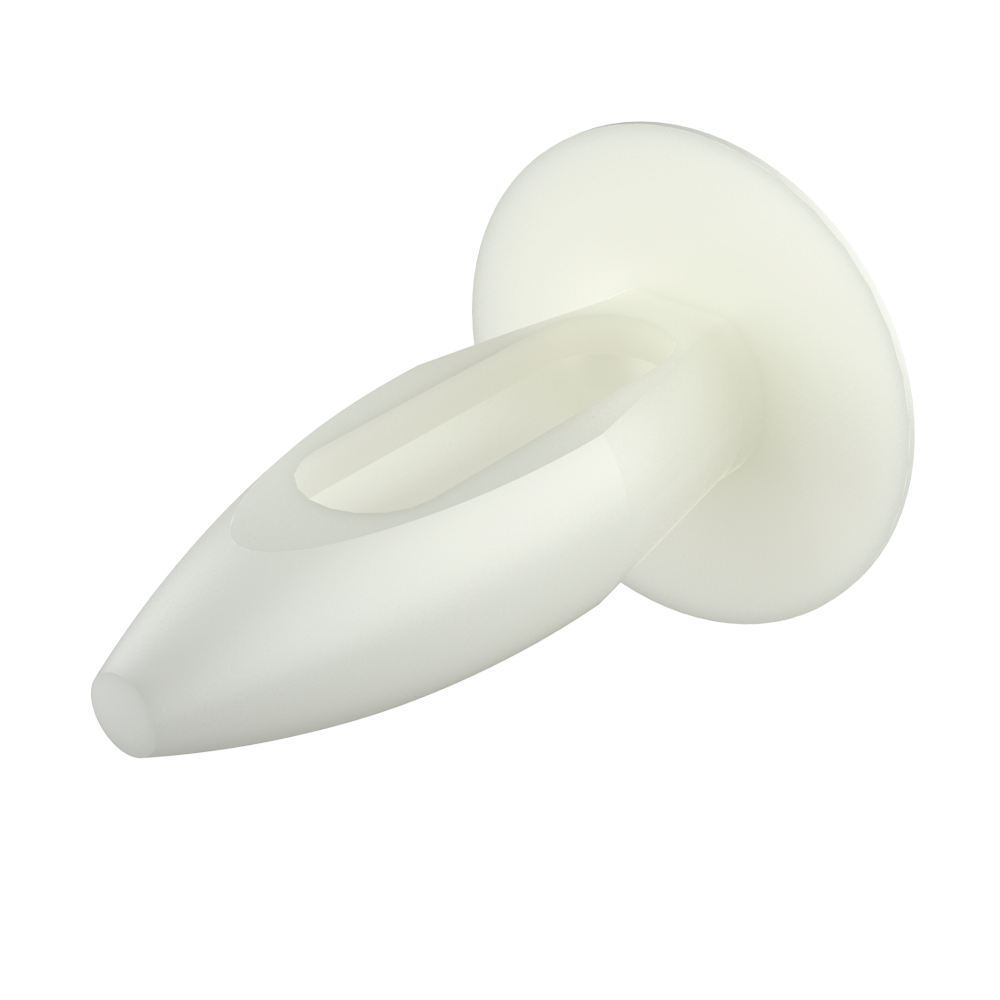

The key-hole shaped interior allows the part to collapse more completely for easy assembly with finger pressure. Tapered, bullet style point slides into hole easily. Angled panel lock section takes up slack in panels to provide for a tight assembly. The design of our clip allows for a relatively large clip diameter to hole size ratio resulting in higher retention force.
Possible to get dyed colors Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of Key-hole clip
| Reference | Hole size (A) |
Panel thickness (G) |
D |
C |
L |
B |
More Info. |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00100300145 | 3,18 | 2,36 | 6,35 | 1,40 | 7,00 | 4,10 | |||||||
| 00100300146 | 3,18 | 3,18 | 6,35 | 1,20 | 8,00 | 4,10 | |||||||
| 00100300147 | 3,18 | 3,96 | 6,35 | 1,40 | 8,60 | 4,10 | |||||||
| 00100300148 | 3,18 | 4,78 | 6,35 | 1,30 | 9,50 | 4,10 | |||||||
| 00100300149 | 3,18 | 5,56 | 6,35 | 1,30 | 10,40 | 4,10 | |||||||
| 00100300150 | 3,18 | 6,35 | 6,35 | 1,30 | 11,20 | 4,10 | |||||||
| 00100300151 | 3,96 | 2,36 | 7,94 | 1,40 | 8,40 | 5,10 | |||||||
| 00100300152 | 3,96 | 3,18 | 7,94 | 1,40 | 9,00 | 5,10 | |||||||
| 00100300153 | 3,96 | 3,96 | 7,94 | 1,30 | 9,80 | 5,10 | |||||||
| 00100300154 | 3,96 | 4,75 | 7,94 | 1,30 | 10,70 | 5,10 | |||||||
| 00100300155 | 3,96 | 5,54 | 7,94 | 1,50 | 11,50 | 5,10 | |||||||
| 00100300156 | 3,96 | 6,35 | 7,94 | 1,40 | 12,40 | 5,10 | |||||||
| 00100300157 | 3,96 | 7,14 | 7,94 | 1,40 | 13,30 | 5,10 | |||||||
| 00100300158 | 3,96 | 7,92 | 7,94 | 1,50 | 14,00 | 5,10 | |||||||
| 00100300159 | 3,96 | 8,71 | 7,94 | 1,40 | 14,80 | 5,10 | |||||||
| 00100300160 | 3,96 | 9,53 | 7,94 | 1,40 | 15,20 | 5,10 | |||||||
| 00100300161 | 4,75 | 2,36 | 7,94 | 1,50 | 9,40 | 6,10 | |||||||
| 04100100055 | 4,75 | 3,18 | 7,92 | 1,60 | 10,20 | 6,00 | |||||||
| 00100300162 | 4,75 | 3,18 | 7,94 | 1,50 | 10,50 | 6,10 | |||||||
| 00100300163 | 4,75 | 3,96 | 7,94 | 1,50 | 11,10 | 6,10 | |||||||
| 00100300164 | 4,75 | 4,75 | 7,94 | 1,50 | 11,70 | 6,10 | |||||||
| 00100300165 | 4,75 | 5,56 | 7,94 | 1,40 | 12,60 | 6,10 | |||||||
| 00100300166 | 4,75 | 6,35 | 7,94 | 1,50 | 13,30 | 6,10 | |||||||
| 00100300572 | 4,75 | 6,35 | 11,89 | 1,50 | 13,30 | 6,10 | |||||||
| 00100300167 | 4,75 | 7,14 | 7,94 | 1,40 | 14,20 | 6,10 | |||||||
| 00100300168 | 4,75 | 7,95 | 7,94 | 1,40 | 15,00 | 6,10 | |||||||
| 00100300169 | 4,75 | 8,74 | 7,94 | 1,60 | 15,80 | 6,10 | |||||||
| 00100300170 | 4,75 | 9,53 | 7,94 | 1,50 | 18,00 | 6,10 | |||||||
| 00100300171 | 5,56 | 2,36 | 8,73 | 1,50 | 10,60 | 7,10 | |||||||
| 00100300172 | 5,56 | 3,18 | 8,73 | 1,40 | 11,50 | 7,10 | |||||||
| 00100300173 | 5,56 | 3,96 | 8,73 | 1,50 | 12,20 | 7,10 | |||||||
| 00100300174 | 5,56 | 4,75 | 8,73 | 1,30 | 13,30 | 7,10 | |||||||
| 00100300175 | 5,56 | 5,56 | 8,73 | 1,50 | 14,00 | 7,10 | |||||||
| 00100300176 | 5,56 | 6,35 | 8,73 | 1,30 | 14,70 | 7,10 | |||||||
| 00100300177 | 5,56 | 7,14 | 8,73 | 1,40 | 15,50 | 7,10 | |||||||
| 00100300178 | 5,56 | 7,92 | 8,80 | 1,40 | 16,30 | 7,15 | |||||||
| 04100100064 | 5,56 | 7,92 | 8,80 | 1,50 | 16,25 | 7,00 | |||||||
| 00100300595 | 5,56 | 8,74 | 8,73 | 1,50 | 17,00 | 7,10 | |||||||
| 00100300720 | 5,56 | 9,53 | 8,74 | 1,50 | 17,80 | 7,10 | |||||||
| 00100300179 | 6,35 | 2,36 | 12,70 | 1,40 | 11,60 | 8,10 | |||||||
| 00100300180 | 6,35 | 3,18 | 12,80 | 1,30 | 12,70 | 8,10 | |||||||
| 00100300181 | 6,35 | 3,96 | 12,70 | 1,40 | 13,30 | 8,10 | |||||||
| 00100300182 | 6,35 | 4,75 | 12,70 | 1,50 | 14,30 | 8,10 | |||||||
| 00100300183 | 6,35 | 5,56 | 12,70 | 1,30 | 15,10 | 8,10 | |||||||
| 00100300184 | 6,35 | 6,35 | 12,70 | 1,30 | 15,70 | 8,00 | |||||||
| 00100300185 | 6,35 | 7,14 | 12,70 | 1,40 | 16,60 | 8,10 | |||||||
| 00100300186 | 6,35 | 7,92 | 12,70 | 1,30 | 17,30 | 8,10 | |||||||
| 00100300187 | 6,35 | 8,71 | 12,70 | 1,40 | 18,20 | 8,10 | |||||||
| 00100300188 | 6,35 | 9,53 | 12,70 | 1,40 | 19,00 | 8,10 | |||||||
| 00100300189 | 6,35 | 10,31 | 12,70 | 1,50 | 19,70 | 8,10 | |||||||
| 00100300190 | 6,35 | 11,10 | 12,70 | 1,50 | 20,50 | 8,10 | |||||||
| 00100300191 | 6,35 | 11,89 | 12,70 | 1,40 | 21,60 | 8,10 | |||||||
| 00100300192 | 6,35 | 12,70 | 12,70 | 1,40 | 22,20 | 8,10 | |||||||
| 00100300699 | 7,14 | 12,70 | 10,31 | 1,40 | 21,30 | 9,30 |
