Our hose clamps provide a superior seal on hose or tubing through their patented and interlocking design by eliminating the leak path created by the overlapping ring design hose clamps. As interlocking grooves are ratcheted together , the sealing diameter of the fastener is aligned in parallel, creating a uniform clamping surface. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal. Clamps can be used in the following fields of application: appliance, electrical, electronic, R.V., boating and automotive. Installation tools for large series are available, see our groups MHAN and MHANZ (2 pneumatic models).

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Minimum Cable Range (d)
Maximum Cable Range (d)
A
B



More
Info.
00101100027 6,25 7,37 5,56 1,19
00101100028 7,62 8,89 5,56 1,59
00101100029 9,14 10,31 5,56 1,59
00101100030 10,41 11,89 6,35 1,59
00101100031 12,07 13,61 5,56 1,59
00101100032 13,67 15,44 6,35 1,59
00101100033 15,16 16,89 6,35 1,59
00101100034 17,02 19,81 5,56 1,59
00101100035 18,54 21,08 5,56 1,59
00101100211 19,05 22,23 5,49 1,57
00101100036 22,10 24,77 5,56 1,59
00101100037 24,21 27,76 6,50 1,70
00101100038 26,19 30,15 7,94 1,59
00101100039 31,75 36,20 7,80 1,80
00101100040 35,71 40,89 8,73 1,59
00101100041 40,46 46,02 8,73 1,59
00101100042 45,47 53,59 8,73 1,59
00101100043 47,50 53,98 10,32 1,59
00101100044 53,85 60,71 10,32 1,59

If you are interested in our family MA, you may be interested in these families as well:

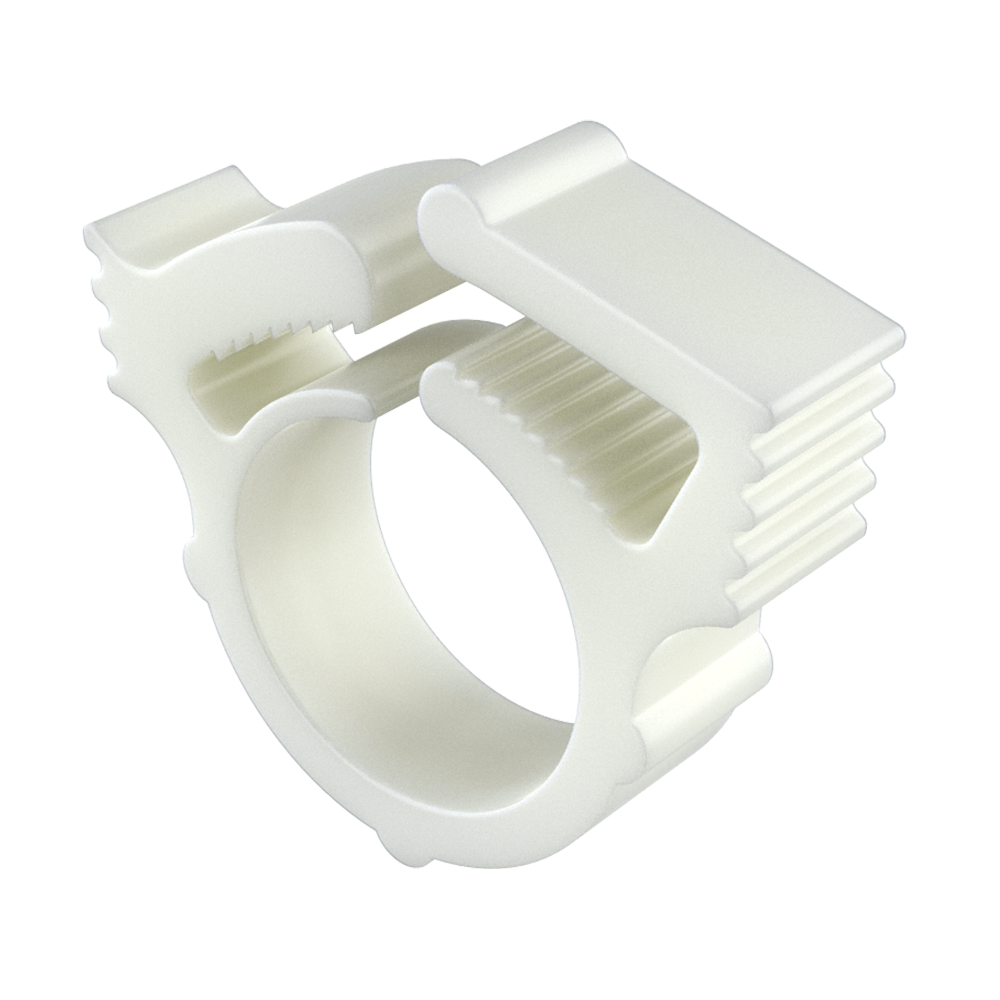

Our hose clamps are tough, corrosion resistant and resilient. They are based on the original design for this type of fastener. A overlapping tapered ring is fastened around the hose or tubing desired and secured to the required tightness by compressing interacting groves in a ratcheting fashion, creating a tight sealing application. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal. Clamps can be used in the following fields of application: appliance, electrical, electronic, R.V., boating and automotive. Parts are removable and reusable.   Our double grip hose clamp features a double tooth interlocking jaw for exceptional strength. The hose clamps are easy and quick to install. An overlapping tapered ring is fastened around the hose or tubing and secured to the required tightness by compressing the double griping interacting grooves in a ratcheting fashion, creating a tight sealing application. Clamps have good chemical resistance and are tough, corrosion resistant and resilient. Clamps can be removed by separating the clamping halves in perpendicular direction at the seal. Clamps can be used in the following fields of application: electrical, electronic, R.V., boating and automotive.
