Our Uniscrew caps protect the screw heads from impacts and dirt while giving them a nice finish. They accept a wide variety of screw sizes, which is helpful to reduce stocks, and has an integrated washer that facilitates the assembly process. The references 00500700015 and 00500700016 are available in the standard colors white, black, yellow, blue, red, green and gray. References 00500700017 and 00500700019 are available in black and white. For special colors, consult our sales office.
The manufacturing material is a PP copolymer (polypropylene) with a very high resistance to impacts even at temperatures of -20°C. If you need a UVA additive to avoid degradation as a result of the sun's rays and the weather , please contact our sales department.

Material: PP
Standard colors: Black - White - Yellow - Blue - Grey - Red - Green / RAL colors manufactured
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Metric Thread
UNC/UNF Thread
A
B
C
H
D
h

PDF
3D IGS
Add
00500700015 M3 to M4 #4 · #6 11,73 4,83 3,70 3,50 7,20 2,80
00500700016 M4 to M5 #8 · #10 13,72 5,59 4,70 3,50 9,50 2,80
00500700017 M5 to M6 1/4 17,53 6,60 6,70 4,90 12,00 3,90
00500700019 M8 3/8 24,13 11,18 10,70 7,90 17,00 6,20

If you are interested in our family MKPP, you may be interested in these families as well:

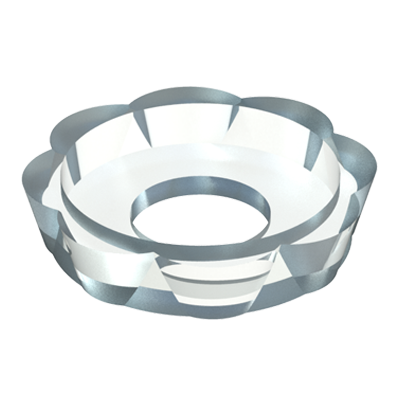

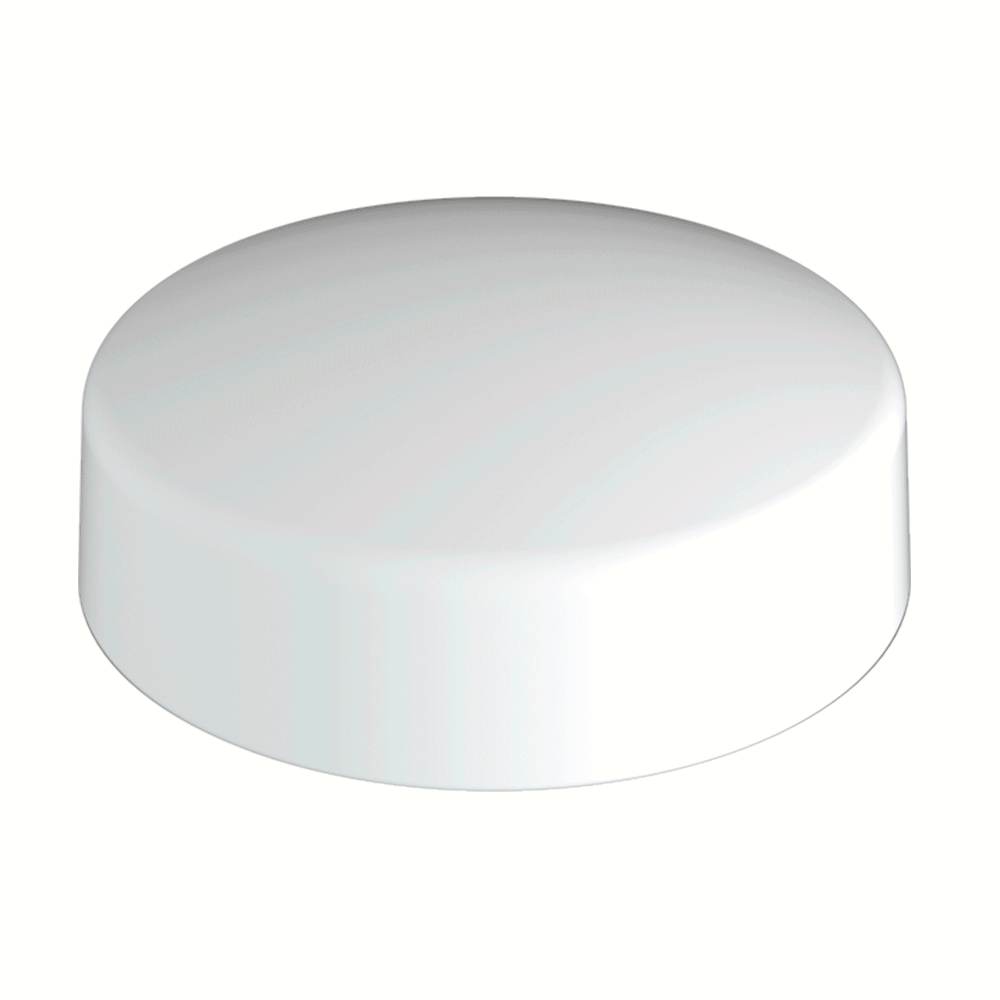

Our screw head cap has been designed to be used with our washers MKPTC and MKPTD. It protects from dust, giving a nice appearance through the assembly of the cap to the washer base. It is available in glossy or matt finish. Remember to order the washer MKPTC or MKPTD with the corresponding cap, although we can supply them separately. All colors except black and white (standard colors), are made to minimum order quantity beeween 20,000 to 50,000 pieces. Please consult our sales office.   Our washer has been designed to be used with our screw head cap MKPTA.   Our washer has been designed to be used with our screw head cap MKPTA.
