Our HYPAK sleeves are made of black neoprene (CR). They offer good resistance to heat, low temperatures, greases, petrol, organic solvents and ozone, as well as excellent resistance to ageing.

Their high flexibility and good electrical properties make them suitable for insulating metal elements with a 90° cable outlet.

· Material: Neoprene (CR)
· Colour: Black
· Operating temperature: -30 °C / +90 °C

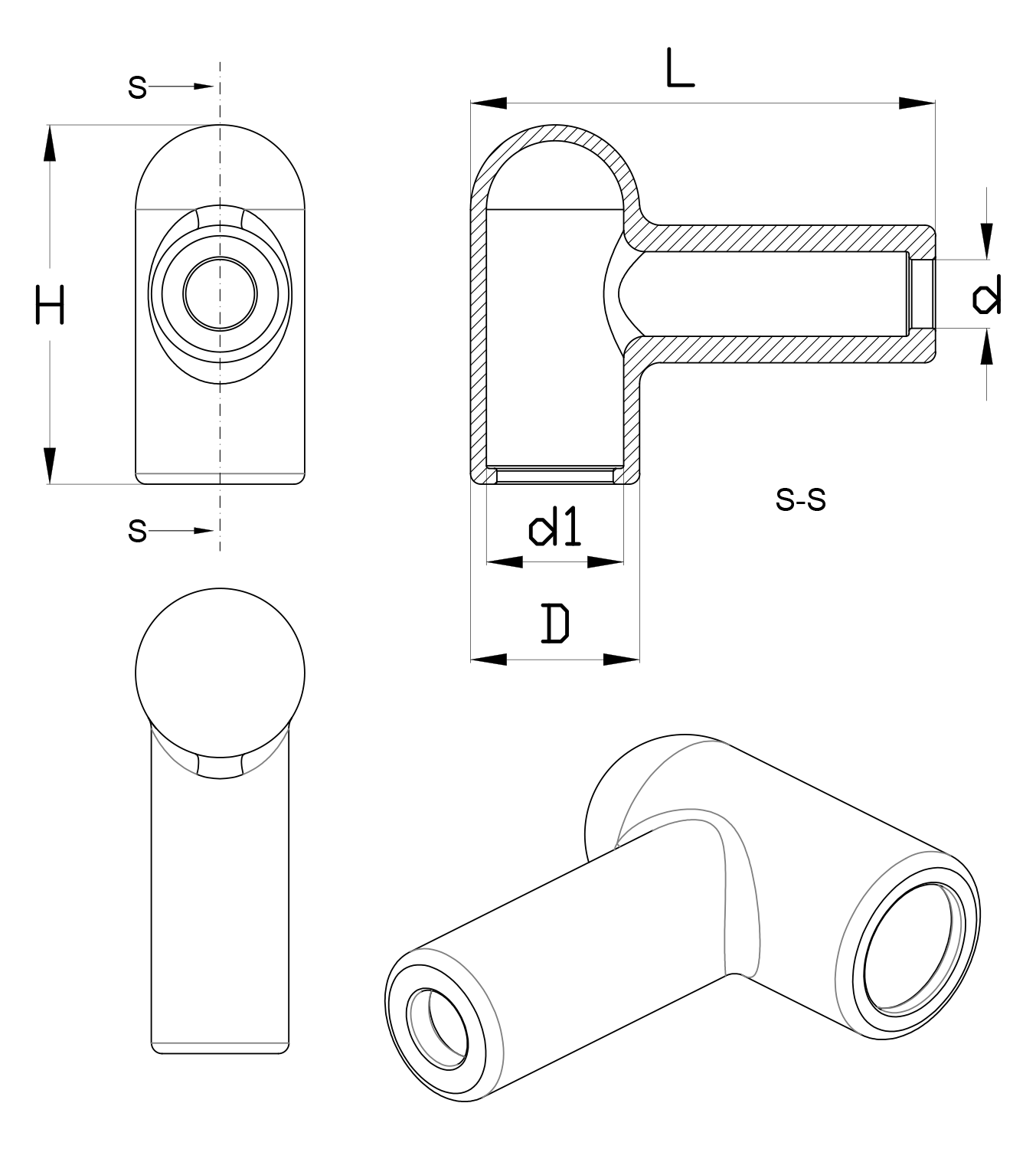

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
d
d1
D
L
H



More
Info.
02010001110 2,50 8,00 10,40 23,00 12,00
02010001111 4,00 13,00 16,00 35,00 25,00
02010001112 6,00 13,00 19,00 56,50 20,00
02010001113 6,50 13,00 16,00 44,00 34,00
02010001114 7,00 18,00 25,00 50,00 22,50
02010001115 12,00 18,00 25,00 50,00 22,50
02010001116 12,00 20,00 28,00 63,50 29,00
02010001117 12,50 17,00 25,00 56,50 27,00
