Our HYPAJ sleeve is made of black neoprene (CR) or nitrile rubber (NBR). It offers good resistance to heat, low temperatures, greases, petrol, organic solvents and ozone, as well as excellent ageing resistance.

Its high flexibility and good electrical properties make it suitable for insulating metal elements with a straight cable outlet.

· Material: Neoprene (CR) or Nitrile rubber (NBR)*
· Colour: Black
· Operating temperature: -30 °C / +90 °C (CR), -25 °C / +100 °C (NBR)

*Only reference 02010001099.

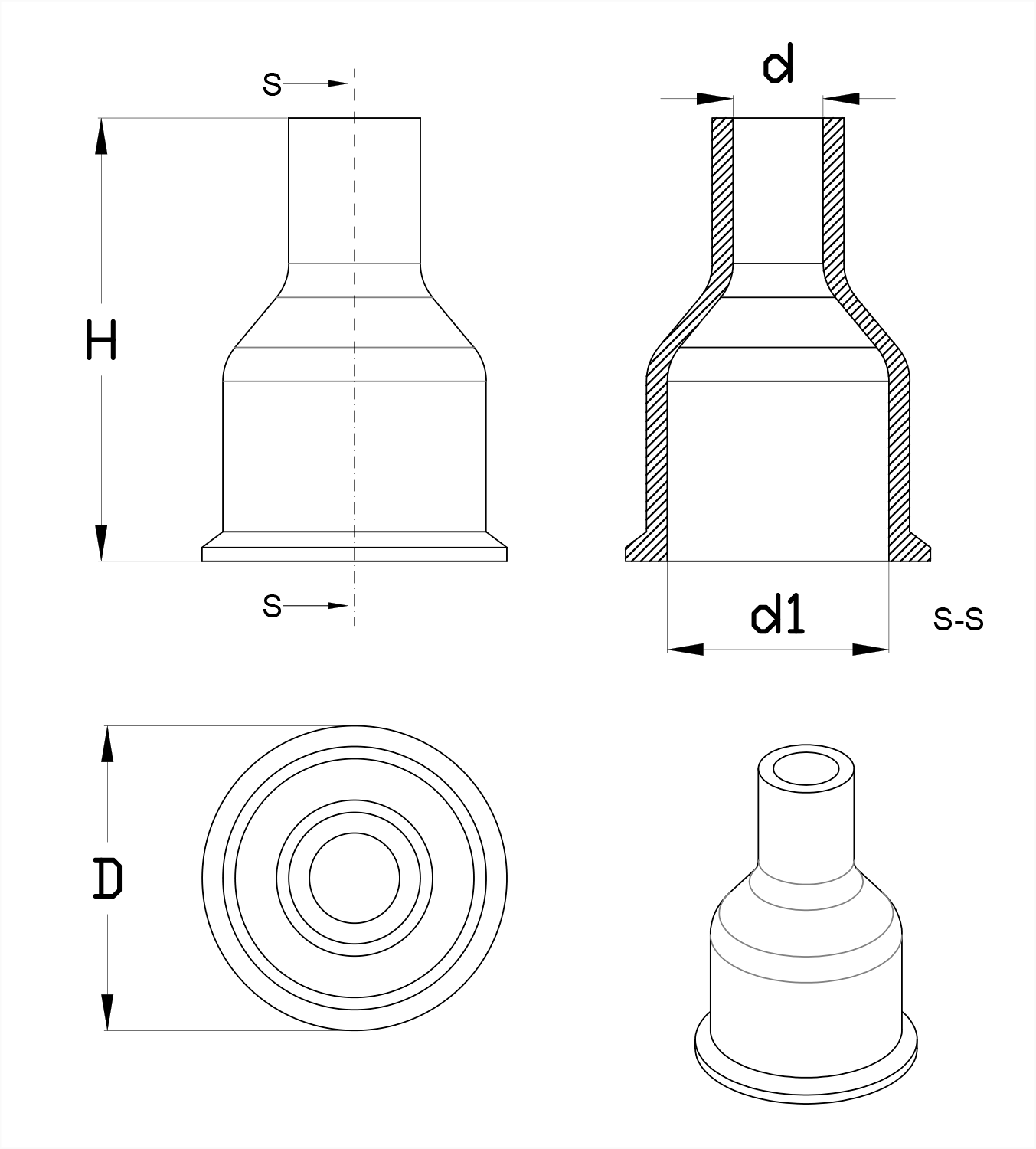

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
d
d1
D
H



More
Info.
02010001090 2,80 13,80 15,00 7,00
02010001091 6,00 14,00 18,00 26,50
02010001092 6,00 20,00 28,00 42,00
02010001093 6,00 45,00 51,00 132,00
02010001094 6,00 55,00 61,00 60,00
02010001095 6,50 14,00 21,00 24,00
02010001096 6,50 16,00 22,00 32,00
02010001097 6,70 12,00 23,00 21,00
02010001098 7,00 29,00 32,00 45,00
02010001099 14,00 30,50 35,00 64,00
02010001100 35,00 53,00 64,00 75,00
