Our MTOT caps are round push-fit caps with a glossy finish designed for closing and protecting tubes and holes. Manufactured in PA66, they provide quick installation and a clean aesthetic finish for industrial applications, metal furniture and tubular structures.

The design allows easy push-fit assembly and good stability once installed. Suitable for protecting tube ends against dirt, impacts and wear.

· Material: PA66
· Colour: Glossy black
· Assembly: Push-fit installation
· Application: Round tubes and holes

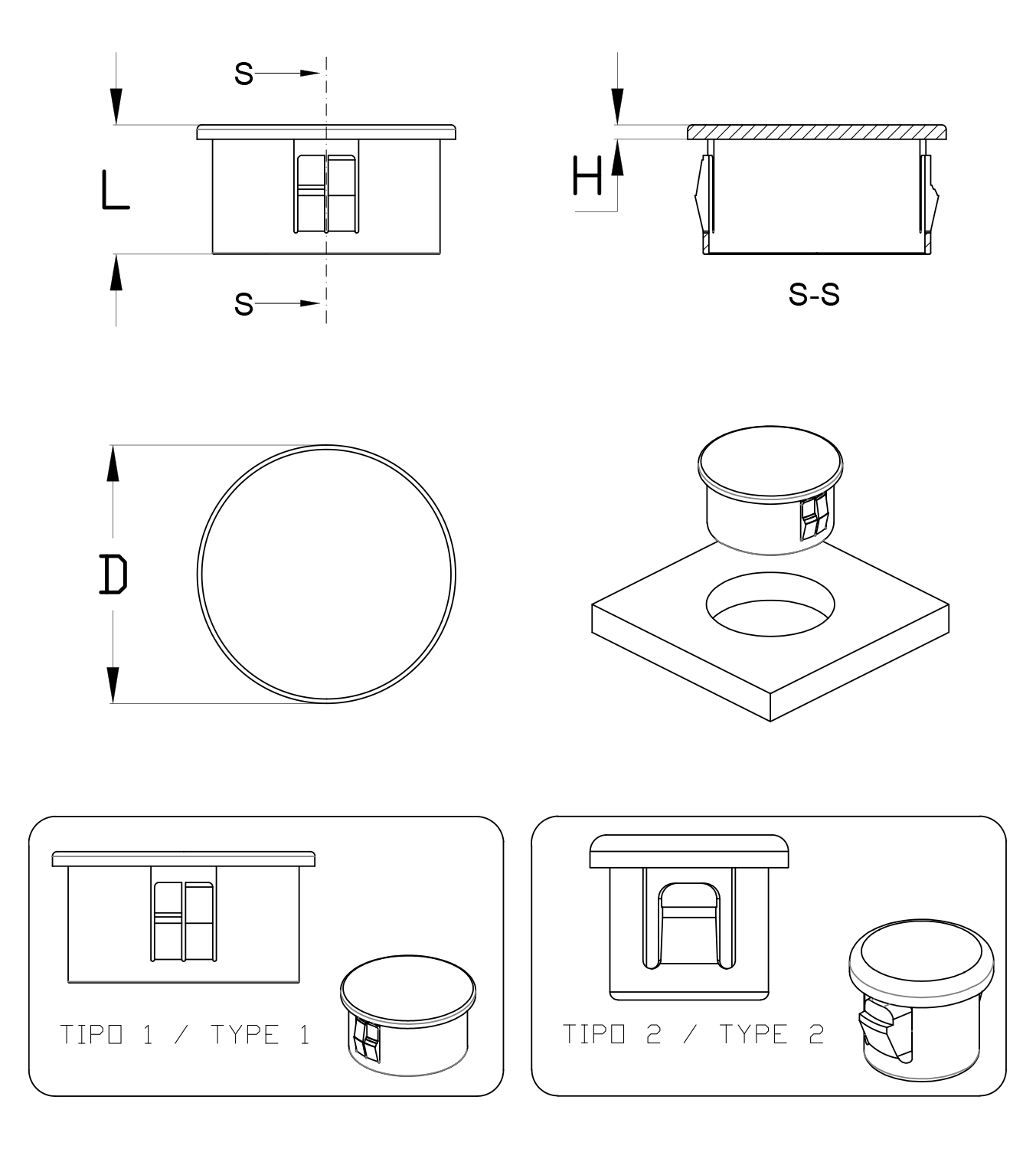

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MTOT
MTOT

Reference
Hole Size
Panel Thickness
G
C
B
L
Type



More
Info.
02007000520 6,40 1,60 1,50 7,90 7,90 2
02007000521 7,90 1,60 1,50 9,50 7,90 2
02007000522 9,50 3,20 1,50 11,90 10,30 1
02007000523 11,10 3,20 1,50 13,50 10,30 1
02007000524 12,70 3,20 1,50 14,30 10,30 1
02007000525 12,70 6,40 1,50 14,30 14,30 1
02007000526 14,30 3,20 1,50 16,70 10,30 1
02007000527 15,90 3,20 1,50 18,60 10,30 1
02007000528 15,90 6,40 1,50 18,30 13,10 1
02007000529 19,10 3,20 1,50 21,80 10,30 1
02007000530 19,10 6,40 1,50 21,60 13,40 1
02007000531 22,20 3,20 1,50 24,20 11,50 1
02007000532 22,20 6,40 1,50 24,20 14,30 1
02007000533 25,40 3,20 1,50 28,60 11,50 1
02007000534 25,40 6,40 1,50 28,60 14,30 1
02007000535 27,80 to 28,60 3,20 1,50 30,90 11,50 1
02007000536 27,80 to 28,60 6,40 1,50 30,90 14,30 1
02007000537 30,10 3,20 1,50 33,30 11,50 1
02007000538 30,10 6,40 1,50 33,30 14,30 1
02007000539 34,90 3,20 1,50 37,70 11,50 1
02007000540 34,90 6,40 1,50 37,70 14,30 1
02007000541 38,10 3,20 1,50 40,80 11,50 1
02007000542 38,10 6,40 1,50 40,80 14,30 1
02007000543 44,40 3,20 1,50 47,60 11,50 1
02007000544 44,40 6,40 1,50 47,60 14,30 1
02007000545 50,50 3,20 1,50 54,80 11,50 1
02007000546 50,50 6,40 1,50 54,80 14,30 1
