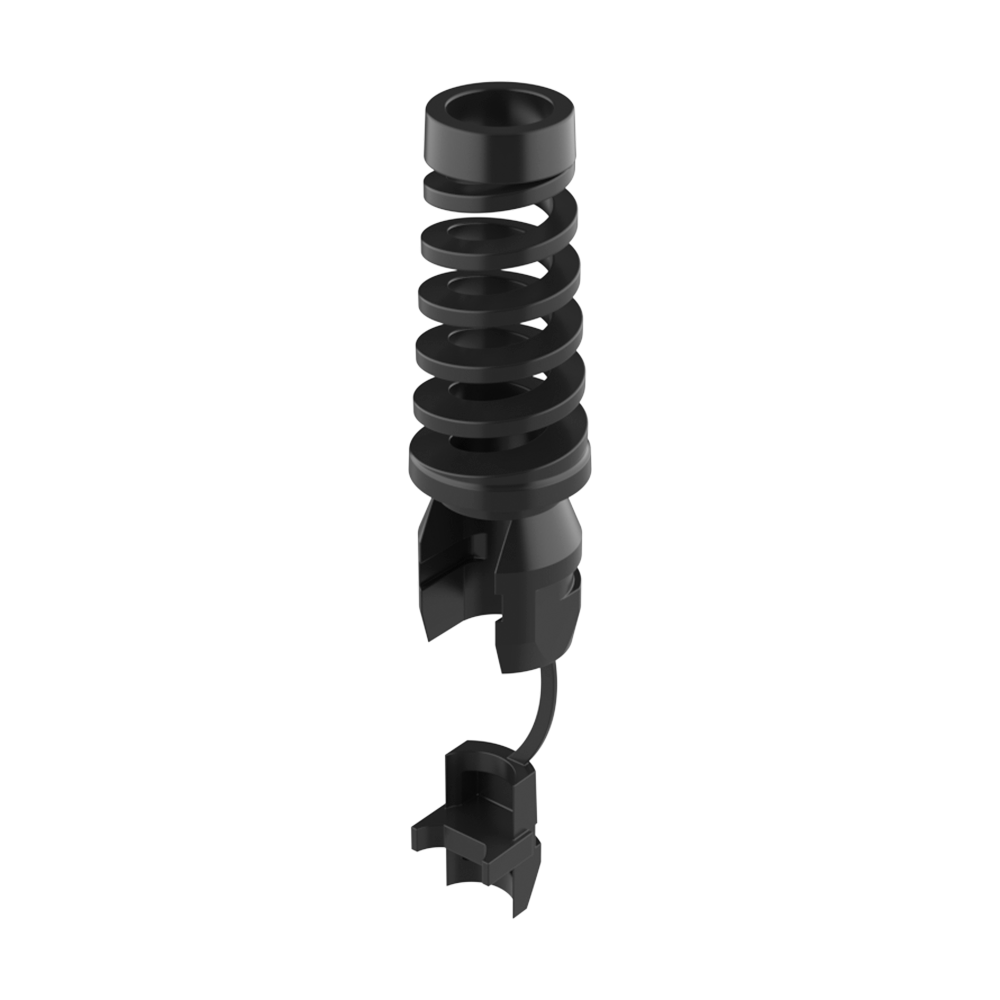

Our MPRW flexible strain relief bushings provide reliable mechanical and electrical protection where cables enter panels. Their integral nylon spring guides the cable into a smooth bend, preventing sharp bending and extending cable service life.
These strain relief bushings absorb pull, push, twist and flex forces acting on the cable, improving the reliability and safety of electrical and electronic equipment. They install with a snap-in mounting system and are available for both round and flat cables, depending on the version.

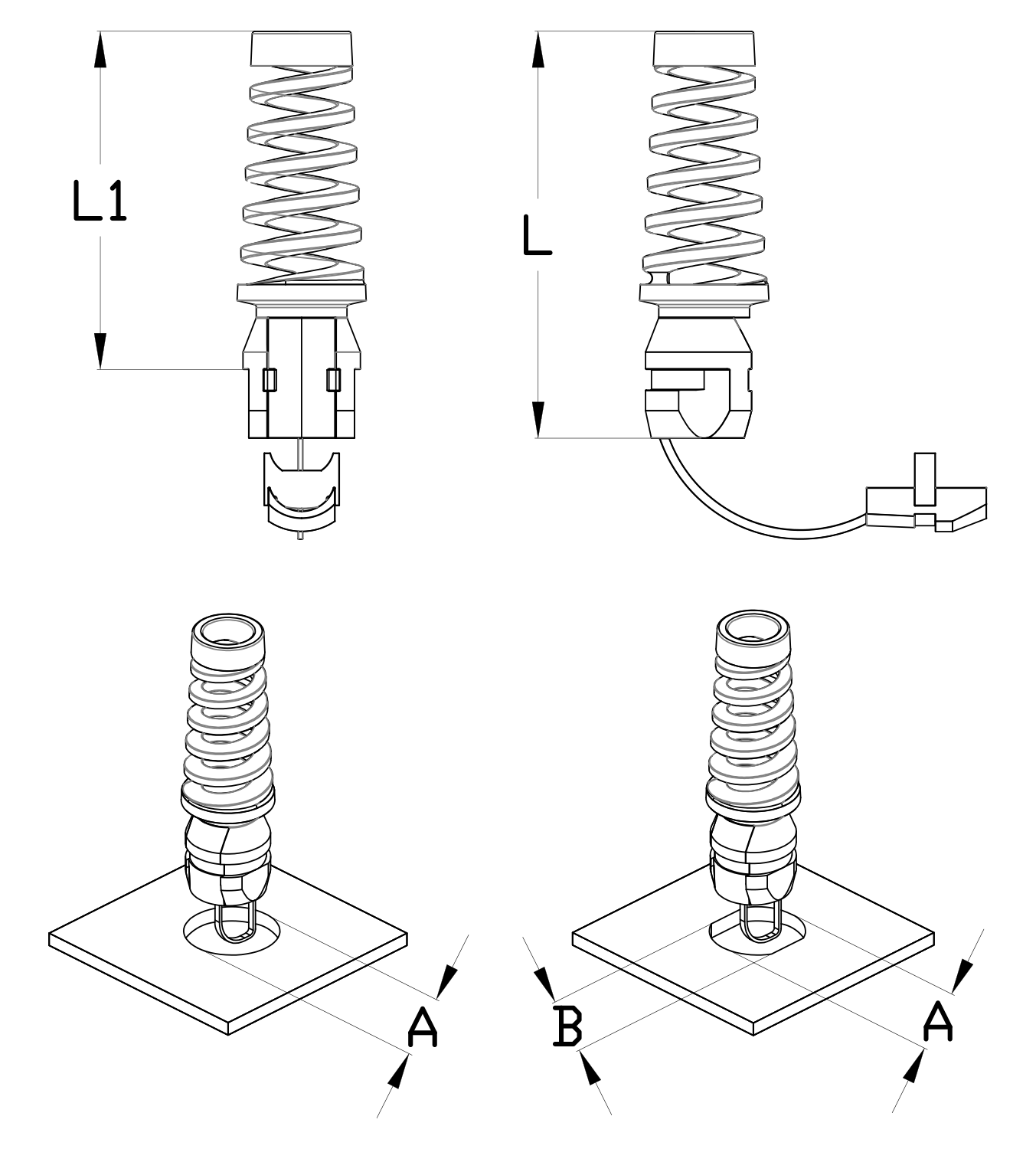

The system can be installed in two different mounting hole types, depending on the required level of retention:
· A: allows the part to rotate.
· A × B: locks the part in place, preventing rotation.
· Material: PA66 (Polyamide 66)
· Colour: Black
· Operating temperature: -18 °C to +105 °C
· Flammability: UL94-V2, self-extinguishing
· Approvals: UR, CSA
Available on request in white or other colours to sample for specified quantities.
