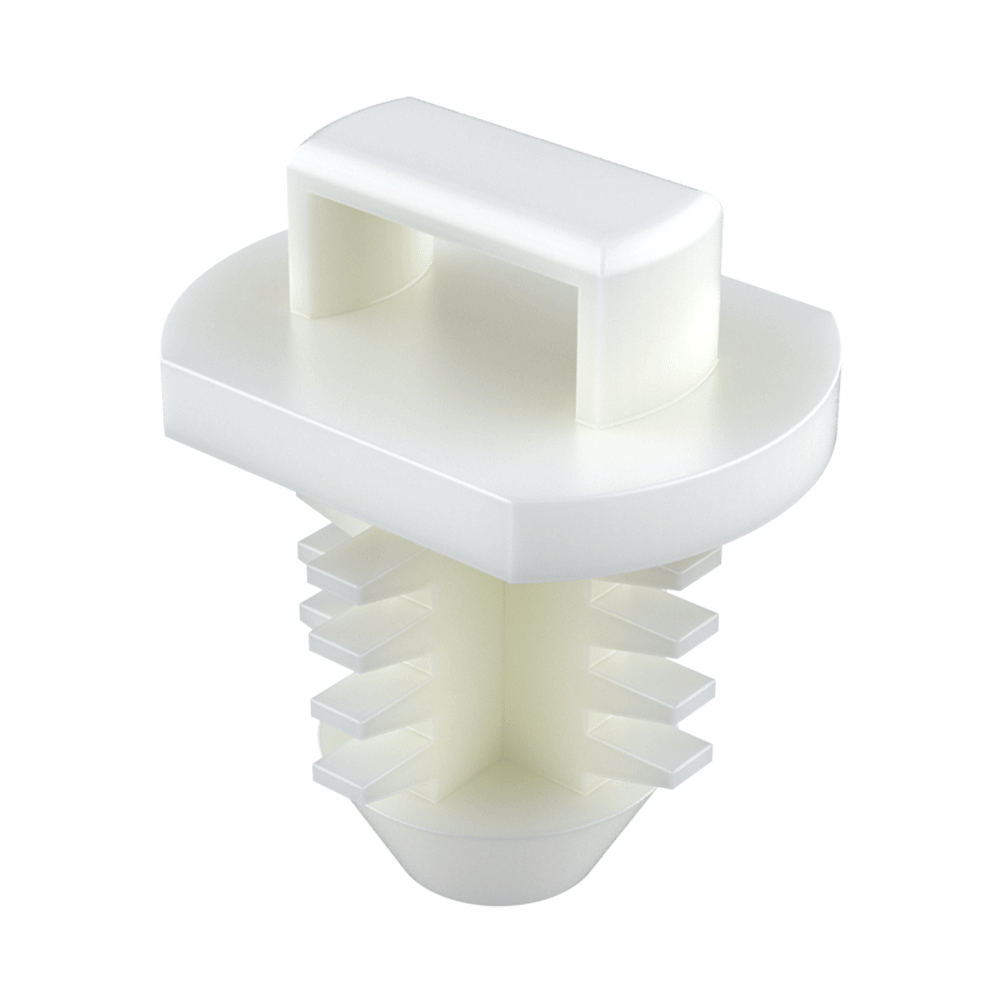

Our MKCD cable tie holder is designed for push-in installation into a pre-drilled hole and accepts a cable tie for securing cables, wires, tubes and similar components. Its fir tree clip design enables quick installation where the rear side of the panel is inaccessible.

Manufactured from PA66, it is available in UL94 V2 and UL94 V0 versions, providing a reliable fastening solution for electrical, electronic and industrial applications.

· Material: PA66 (Polyamide 66) UL94 V2 and UL94 V0
· Colour: Natural and Black

Compatible with different ISC cable tie families, provided the cable tie width is 4.20 mm or less.


  Possible to get dyed colors

Drawing PDF:
UL94:   V2 - V0
IP:
RoHS:

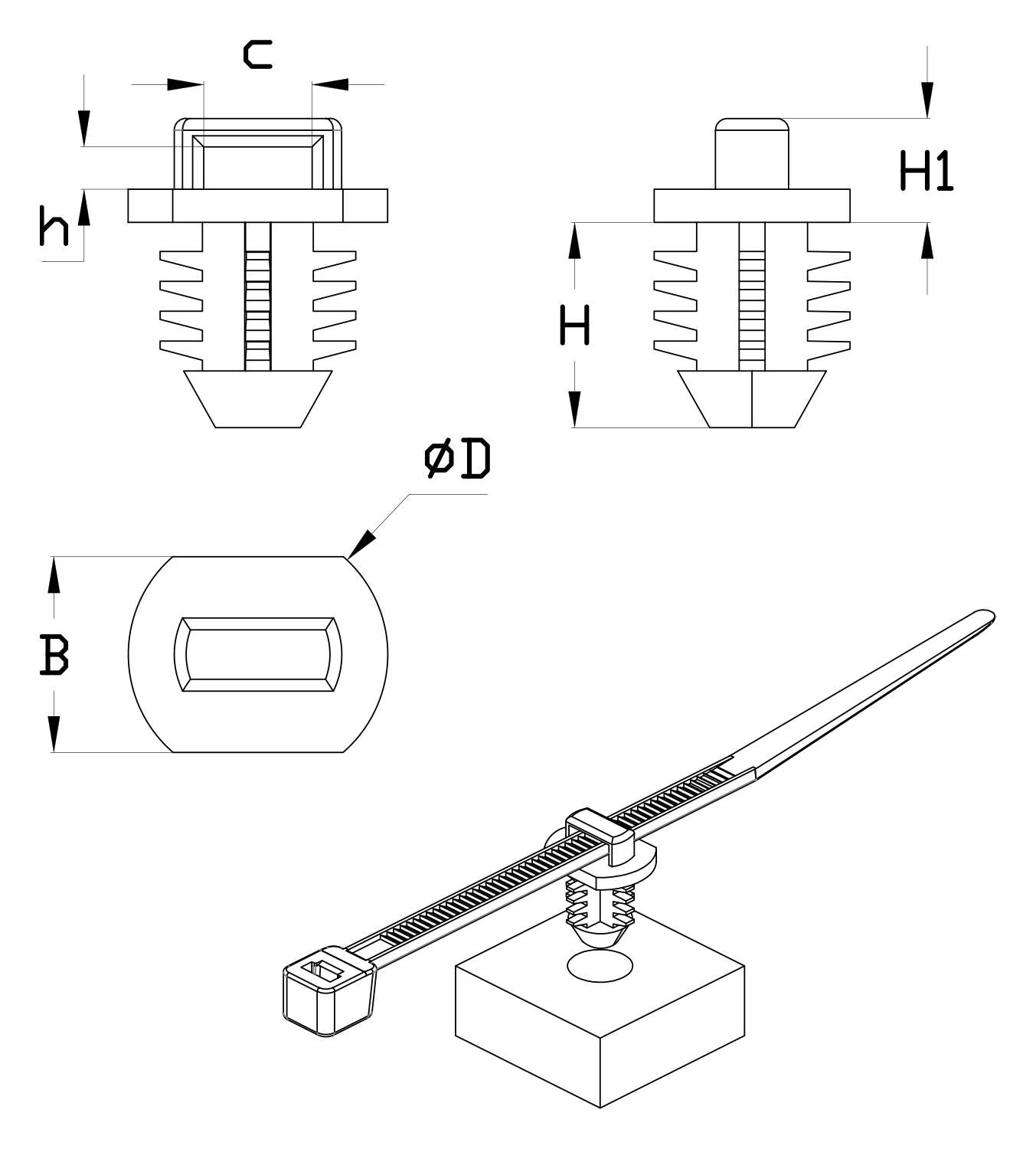

Measures expressed in: Millimeters
Video:


Reference
Panel Hole Size
Panel Thickness
c x h
H
H1
D
B



More
Info.
01301200076 7,90 6,40 4,20 x 1,60 8,70 4,40 11,00 8,30
