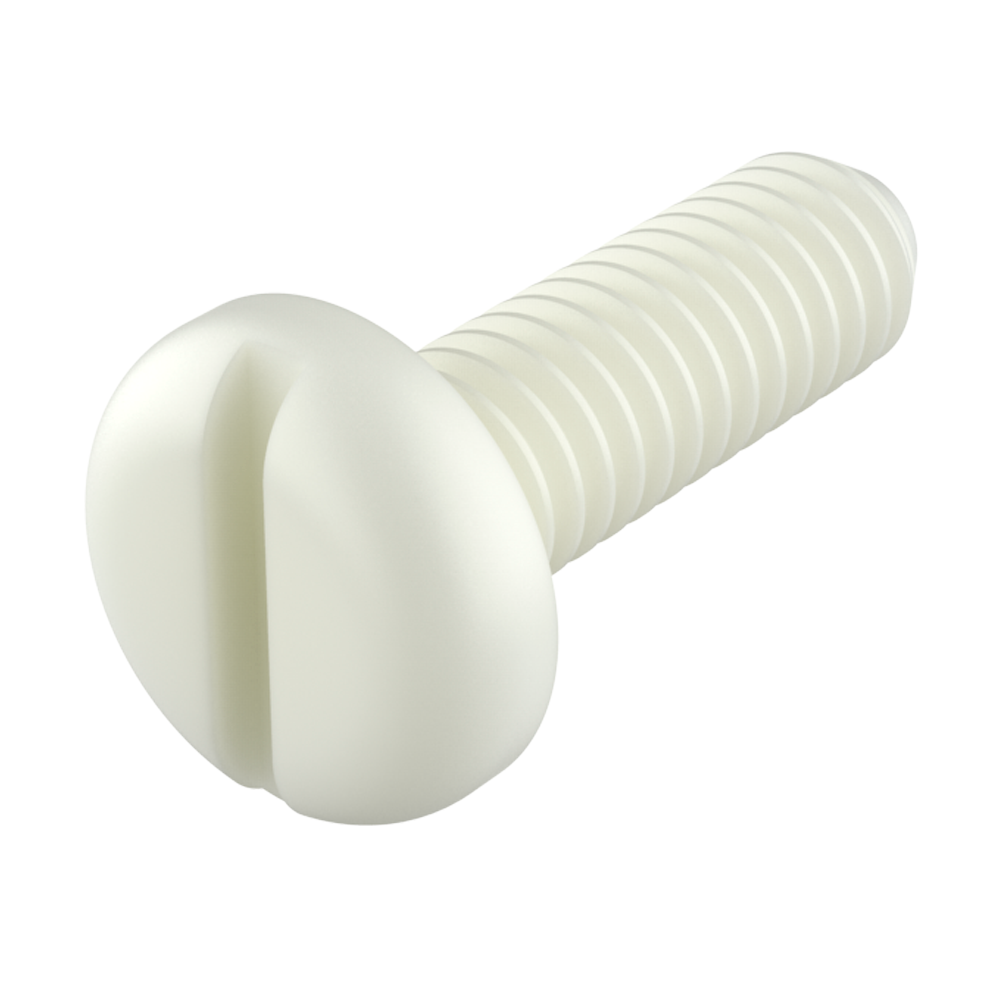

Screws made of PA66 and PA66GF30, high-quality technical materials that combine excellent mechanical strength, good thermal stability, and suitable chemical resistance. They offer a lightweight and reliable alternative to metal screws in a wide range of industrial applications.

Main properties
• Thermal: PA66 up to 100 °C, PA66GF30 up to 120 °C continuous use
• Mechanical: high strength, improved stiffness with glass fiber, good dimensional stability
• Chemical: good resistance to oils, greases, hydrocarbons and common solvents

Advantages over metal screws
• Lower weight without compromising strength
• Corrosion resistant, even in aggressive environments
• Electrically and thermally insulating
• Non-magnetic, non-conductive and spark-free
• Absorb vibrations and reduce noise
• Less maintenance and longer durability under harsh conditions

Ideal for sectors such as electrical, electronics, automotive, construction, HVAC and general industry.


  Possible to get dyed colors

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MTCAR
MTCAR

Reference
Metric Thread
L
A
H
Similar DIN
Simliar ISO



More
Info.
00100100379 M2 4,00 3,80 1,60 DIN 85 ISO 1580
00100100380 M2 5,00 3,80 1,60 DIN 85 ISO 1580
00100100381 M2 6,00 3,80 1,60 DIN 85 ISO 1580
00100100382 M2 8,00 3,80 1,60 DIN 85 ISO 1580
00100100383 M2 10,00 3,80 1,60 DIN 85 ISO 1580
00100100384 M2 12,00 3,80 1,60 DIN 85 ISO 1580
00100100385 M2 16,00 3,80 1,60 DIN 85 ISO 1580
00100100386 M2 20,00 3,80 1,60 DIN 85 ISO 1580
00100100387 M2 25,00 3,80 1,60 DIN 85 ISO 1580
00100100388 M2,5 4,00 5,00 2,00 DIN 85 ISO 1580
00100100389 M2,5 5,00 5,00 2,00 DIN 85 ISO 1580
00100100390 M2,5 6,00 5,00 2,00 DIN 85 ISO 1580
00100100391 M2,5 8,00 5,00 2,00 DIN 85 ISO 1580
00100100392 M2,5 10,00 5,00 2,00 DIN 85 ISO 1580
00100100393 M2,5 12,00 5,00 2,00 DIN 85 ISO 1580
00100100394 M2,5 16,00 5,00 2,00 DIN 85 ISO 1580
00100100395 M2,5 20,00 5,00 2,00 DIN 85 ISO 1580
00100100396 M2,5 25,00 5,00 2,00 DIN 85 ISO 1580
00100100397 M3 4,00 6,00 2,40 DIN 85 ISO 1580
00100100398 M3 5,00 6,00 2,40 DIN 85 ISO 1580
00100100399 M3 6,00 6,00 2,40 DIN 85 ISO 1580
00100100400 M3 8,00 6,00 2,40 DIN 85 ISO 1580
00100100401 M3 10,00 6,00 2,40 DIN 85 ISO 1580
00100100402 M3 12,00 6,00 2,40 DIN 85 ISO 1580
00100100403 M3 16,00 6,00 2,40 DIN 85 ISO 1580
00100100404 M3 20,00 6,00 2,40 DIN 85 ISO 1580
00100100405 M3 25,00 6,00 2,40 DIN 85 ISO 1580
00100100406 M3 30,00 6,00 2,40 DIN 85 ISO 1580
00100100407 M3 35,00 6,00 2,40 DIN 85 ISO 1580
00100100408 M3 42,00 6,00 2,40 DIN 85 ISO 1580
00100100409 M3,5 5,00 7,00 2,70 DIN 85 ISO 1580
00100100410 M3,5 6,00 7,00 2,70 DIN 85 ISO 1580
00100100411 M3,5 7,00 7,00 2,70 DIN 85 ISO 1580
00100100412 M3,5 8,00 7,00 2,70 DIN 85 ISO 1580
00100100413 M3,5 10,00 7,00 2,70 DIN 85 ISO 1580
00100100414 M3,5 12,00 7,00 2,70 DIN 85 ISO 1580
00100100415 M3,5 16,00 7,00 2,70 DIN 85 ISO 1580
00100100416 M3,5 20,00 7,00 2,70 DIN 85 ISO 1580
00100100417 M3,5 25,00 7,00 2,70 DIN 85 ISO 1580
00100100418 M3,5 35,00 7,00 2,70 DIN 85 ISO 1580
00100100419 M3,5 42,00 7,00 2,70 DIN 85 ISO 1580
00100100420 M4 3,00 8,00 3,10 DIN 85 ISO 1580
00100100421 M4 6,00 8,00 3,10 DIN 85 ISO 1580
00100100422 M4 8,00 8,00 3,10 DIN 85 ISO 1580
00100100423 M4 10,00 8,00 3,10 DIN 85 ISO 1580
00100100424 M4 12,00 8,00 3,10 DIN 85 ISO 1580
00100100425 M4 16,00 8,00 3,10 DIN 85 ISO 1580
00100100426 M4 20,00 8,00 3,10 DIN 85 ISO 1580
00100100427 M4 25,00 8,00 3,10 DIN 85 ISO 1580
00100100428 M4 30,00 8,00 3,10 DIN 85 ISO 1580
00100100429 M4 35,00 8,00 3,10 DIN 85 ISO 1580
00100100430 M4 40,00 8,00 3,10 DIN 85 ISO 1580
00100100431 M5 6,00 9,40 3,80 DIN 85 ISO 1580
00100100432 M5 8,00 9,40 3,80 DIN 85 ISO 1580
00100100433 M5 10,00 9,40 3,80 DIN 85 ISO 1580
00100100434 M5 12,00 9,40 3,80 DIN 85 ISO 1580
00100100435 M5 15,00 9,40 3,80 DIN 85 ISO 1580
00100100436 M5 16,00 9,40 3,80 DIN 85 ISO 1580
00100100437 M5 20,00 9,40 3,80 DIN 85 ISO 1580
00100100438 M5 25,00 9,40 3,80 DIN 85 ISO 1580
00100100439 M5 30,00 9,40 3,80 DIN 85 ISO 1580
00100100440 M5 35,00 9,40 3,80 DIN 85 ISO 1580
00100100441 M5 40,00 9,40 3,80 DIN 85 ISO 1580
00100100442 M6 5,00 12,00 4,60 DIN 85 ISO 1580
00100100443 M6 8,00 12,00 4,60 DIN 85 ISO 1580
00100100444 M6 10,00 12,00 4,60 DIN 85 ISO 1580
00100100445 M6 12,00 12,00 4,60 DIN 85 ISO 1580
00100100446 M6 16,00 12,00 4,60 DIN 85 ISO 1580
00100100447 M6 20,00 12,00 4,60 DIN 85 ISO 1580
00100100448 M6 22,00 12,00 4,60 DIN 85 ISO 1580
00100100449 M6 25,00 12,00 4,60 DIN 85 ISO 1580
00100100450 M6 30,00 12,00 4,60 DIN 85 ISO 1580
00100100451 M6 35,00 12,00 4,60 DIN 85 ISO 1580
00100100452 M6 40,00 12,00 4,60 DIN 85 ISO 1580
00100100453 M6 45,00 12,00 4,60 DIN 85 ISO 1580
00100100454 M6 50,00 12,00 4,60 DIN 85 ISO 1580
00100100455 M6 60,00 12,00 4,60 DIN 85 ISO 1580
00100100456 M6 70,00 12,00 4,60 DIN 85 ISO 1580
00100100457 M6 75,00 12,00 4,60 DIN 85 ISO 1580
00100100458 M8 10,00 16,00 6,00 DIN 85 ISO 1580
00100100459 M8 16,00 16,00 6,00 DIN 85 ISO 1580
00100100460 M8 20,00 16,00 6,00 DIN 85 ISO 1580
00100100461 M8 25,00 16,00 6,00 DIN 85 ISO 1580
00100100462 M8 30,00 16,00 6,00 DIN 85 ISO 1580
00100100463 M8 35,00 16,00 6,00 DIN 85 ISO 1580
00100100464 M8 50,00 16,00 6,00 DIN 85 ISO 1580
00100100465 M8 70,00 16,00 6,00 DIN 85 ISO 1580
00100100466 M10 13,00 20,00 7,50 DIN 85 ISO 1580
00100100467 M10 16,00 20,00 7,50 DIN 85 ISO 1580
00100100468 M10 19,00 20,00 7,50 DIN 85 ISO 1580
00100100469 M10 20,00 20,00 7,50 DIN 85 ISO 1580
00100100470 M10 25,00 20,00 7,50 DIN 85 ISO 1580
00100100471 M10 30,00 20,00 7,50 DIN 85 ISO 1580
00100100472 M10 35,00 20,00 7,50 DIN 85 ISO 1580
00100100473 M10 50,00 20,00 7,50 DIN 85 ISO 1580
00100100474 M10 60,00 20,00 7,50 DIN 85 ISO 1580
