Our nylon eye bolts provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.

Material:  PA66
Standard colors: Natural - Black
Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Thread
T
H
L
A
D
C
Type

PDF
3D IGS
Add
00100402595 6 · 32 15,88 19,05 32,60 3,80 13,40 6,35 UNC
00100402596 8 · 32 25,40 28,58 43,18 4,22 14,70 6,35 UNC
00100402597 10 · 24 22,23 25,40 44,45 4,88 19,05 9,53 UNC
00100402598 1/4 · 20 22,23 25,00 51,10 6,35 25,40 12,70 UNC
00100402599 1/4 · 20 31,75 37,80 63,70 6,35 25,40 12,70 UNC
00100402600 1/4 · 20 31,75 50,80 76,20 6,40 25,40 12,70 UNC
00100402601 1/4 · 20 31,75 101,60 127,00 6,40 25,40 12,70 UNC
00100402602 5/16 · 18 22,23 24,40 57,60 7,92 31,80 15,88 UNC
00100402603 5/16 · 18 32,00 49,60 83,00 7,92 31,80 15,88 UNC
00100402604 3/8 · 16 22,23 24,40 63,80 9,53 38,10 19,05 UNC
00100402605 3/8 · 16 32,15 49,70 89,40 9,58 38,10 19,05 UNC
00100402606 3/8 · 16 38,10 62,40 101,90 9,58 38,10 19,05 UNC
00100402607 3/8 · 16 63,50 100,40 140,00 9,53 38,10 19,05 UNC

If you are interested in our family MWY, you may be interested in these families as well:

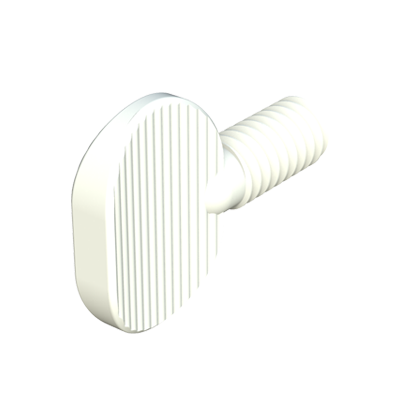

Our nylon oval head thumb screws provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.   Washers are used in multiple mechanical isolating applications. They reduce vibration, and they are strong and corrosion resistant. We can produce special sizes through injection and tooling. All washers manufactured in PA66 UL94V2 can be supplied in dyed colours.Upon request our washers can be delivered with a double-sided adhesive for an easier assembling and fixing process, depending on the reference, contact us.   Washers with shoulders are used in multiple mechanical isolating applications. They reduce vibration, and they are strong and corrosion resistant. We can produce special sizes through injection and tooling. All washers manufactured in PA66 UL94V2 can be supplied in black and dyed colours. Upon request all our washers can be supplied with a double-sided adhesive for an easier assembling and fixing process.   Our nylon hexagonal nuts (DIN 934 nuts) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.   Our nylon wing nuts (DIN 3518 nuts) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.
