Our edge holder protects and insulates wires and cables from the edges of chassis and frames.Its installation to chassis and frames is very easy to complete. Moreover the part is suitable for small wires.

Material: PA66
Standard colors: Black - White
UL94:   V2/V0
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Panel thickness
W1
W2
W3
L1
L2
H
D / t

PDF
3D IGS
Add
01012000807 0,80 to 1,60 5,90 11,80 10,60 4,80 8,50 3,60 1,80 / 0,90

If you are interested in our family XAD, you may be interested in these families as well:

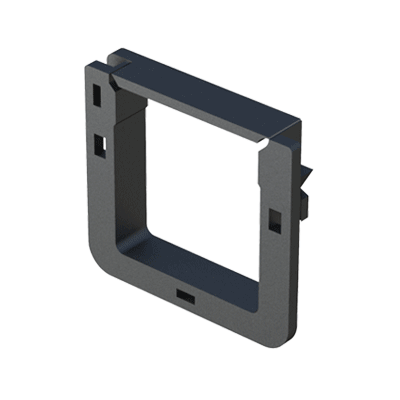

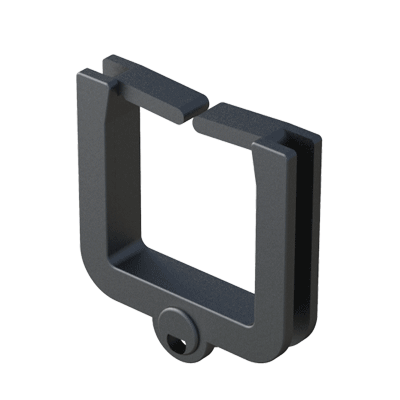

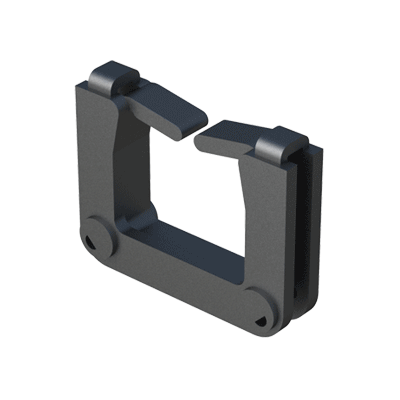

Our edge holder protects and insulates wires and cables from the edges of chassis and frames. Its installation to chassis and frames is very easy to complete.   Our edge holder protects and insulates wires and cables from the edges of chassis and frames. The wire guide locking mechanism enables the edge holder to be mounted sideways or upside down, on the upper edges of chassis.   Our edge holder protects and insulates wires and cables from the edges of chassis and frames.Its installation to chassis and frames is very easy to complete.
