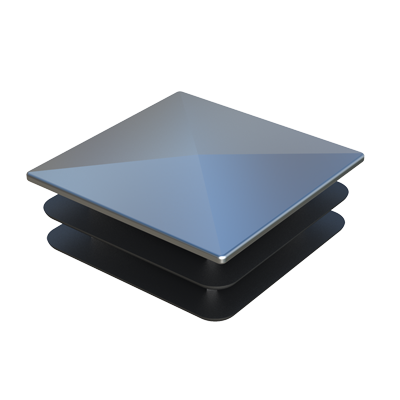

Our square chrome MTGLA inserts are manufactured in ABS, an ideal material for the chrome plating process to which this product family is subjected.

The standard galvanic treatment offers a high-quality aesthetic finish and is exclusively for interior use.

These plugs are available with the finish Bright/polished chrome - Matte/satin chrome - Bright/polished nickel - Matte/satin nickel - Bright/polished gold - Matte/satin gold – Stainless Steel, as well as with the option personalization by laser engraving.

If you want this same piece in ABS black, consult our family MTGLP.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MTGLA
MTGLA

Reference
For Tube (D)
Tube Thickness
L
H



More
Info.
00900800001 12 x 12 1,00 7,00 2,00
00900103011 12 x 12 1,20 7,00 2,00
00900103012 15 x 15 1,00 8,50 2,50
00900103013 15 x 15 1,20 8,50 2,50
00900103014 15 x 15 1,50 8,50 2,50
00900103015 16 x 16 1,00 8,00 3,00
00900103016 16 x 16 1,50 8,00 3,00
00900103017 18 x 18 1,20 8,00 3,00
00900103018 18 x 18 1,50 8,00 3,00
00900103019 20 x 20 1,00 7,00 3,00
00900103020 20 x 20 1,20 7,00 3,00
00900103021 20 x 20 1,50 7,00 3,00
00900103022 25 x 25 1,00 7,00 3,00
00900103023 25 x 25 1,20 7,00 3,00
00900103024 25 x 25 1,50 7,00 3,00
00900103025 25 x 25 2,00 7,00 3,00
00900103026 30 x 30 1,00 10,00 4,00
00900103027 30 x 30 1,20 10,00 4,00
00900103028 30 x 30 1,50 10,00 4,00
00900103029 35 x 35 1,20 11,00 4,00
00900103030 35 x 35 1,50 11,00 4,00
00900103031 40 x 40 1,20 11,00 4,00
00900103032 40 x 40 1,50 11,00 4,00
00900103033 45 x 45 1,20 11,00 5,00
00900103034 45 x 45 1,50 11,00 5,00
00900103035 50 x 50 1,20 11,00 5,00
00900103036 50 x 50 1,50 11,00 5,00
00900800002 50 x 50 2,00 11,00 5,00
00900800003 50 x 50 3,00 11,00 5,00
00900103037 60 x 60 1,20 12,00 5,00
00900103038 60 x 60 1,50 12,00 5,00
00900103039 80 x 80 1,20 12,00 5,00
00900103040 80 x 80 1,50 12,00 5,00
00900103041 80 x 80 2,00 12,00 5,00

If you are interested in our family MTGLA, you may be interested in these families as well:

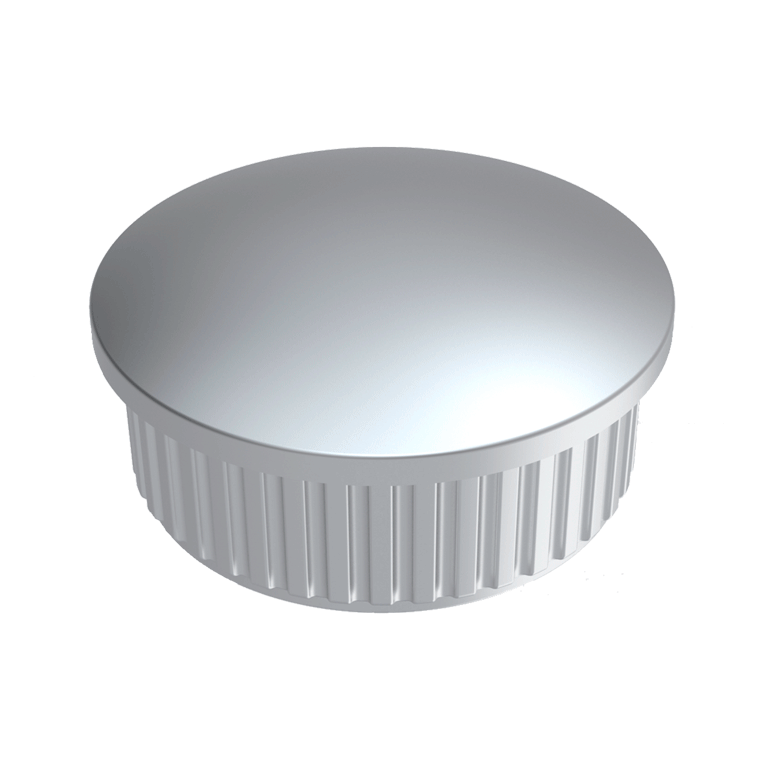

Our <b>round chrome</b> MTGLC inserts are manufactured in <b>ABS</b>, an ideal material for the chrome plating process to which this product family is subjected. <br><br> The <b>standard</b> galvanic treatment offers a high-quality aesthetic finish and is exclusively for <b>interior</b> use.<br><br> These plugs are available with the finish <i>Bright/polished chrome - Matte/satin chrome - Bright/polished nickel - Matte/satin nickel - Bright/polished gold - Matte/satin gold – Stainless Steel</i>, as well as with the option <b>personalization by laser engraving</b>.<br><br> If you want this same piece in ABS <b>black color</b>, consult our family <b><a href=' https://www.iscsl.co.uk/round-tube-insert-abs/mtglo/ ' target='_top'>MTGLO</a></b>.   Our <b>rectangular chrome-plated</b> MTGL inserts are manufactured in <b>ABS</b>, an ideal material for the chrome-plating process to which this product family is subjected. <br><br> The <b>standard</b> galvanic treatment offers a high-quality aesthetic finish and is exclusively for <b>interior</b> use.<br><br> These plugs are available with the finish <i>Bright/polished chrome - Matte/satin chrome - Bright/polished nickel - Matte/satin nickel - Bright/polished gold - Matte/satin gold – Stainless Steel</i>, as well as with the option <b>personalization by laser engraving</b>.<br><br> If you want this same piece in ABS <b>black</b>, consult our family <b><a href=' https://www.iscsl.co.uk/rectangular-tube-insert-abs/mtglq/ 'target='_top'>MTGLQ</a></b>.   Our <b>oval chrome</b> MTGLT ferrules are manufactured in <b>ABS</b>, an ideal material for the chrome plating process to which this product family is subjected. <br><br> The <b>standard</b> galvanic treatment offers a high-quality aesthetic finish and is exclusively for <b>interior</b> use.<br><br> These plugs are available with the finish <i>Bright/polished chrome - Matte/satin chrome - Bright/polished nickel - Matte/satin nickel - Bright/polished gold - Matte/satin gold – Stainless Steel</i>, as well as with the option <b>personalization by laser engraving</b>.<br><br> If you want this same piece in black ABS, consult our family <b><a href=' https://www.iscsl.co.uk/oval-tube-insert-abs/mtglr/ ' target='_top'> MTGLR</a></b>.   Our ribbed insert with steel base (NOT stainless) is for square tubes, but we also have it available for round tubes: TGLM, rectangular tubes: TGLMX and for oval tubes: TGLMO.
