Our connector has been designed in order to connect 2 rectangular tubes. It has a 135º angle.

Material:  PA6   PA630%GF
Standard colors: Black
Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
Angle (A)

PDF
3D IGS
More
Info.
02300400201 30 x 15 1,00 29,00 135º
02300400193 40 x 20 2,00 52,00 150º
02300400202 50 x 20 1,00 30,00 135º

If you are interested in our family SRAAG, you may be interested in these families as well:

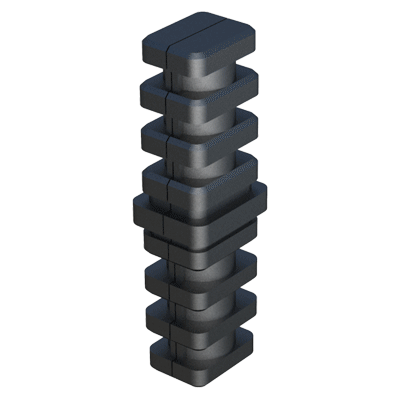

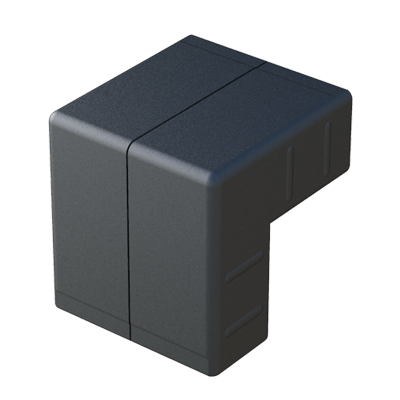

Our straight connector has been designed for rectangular tubes. It is supplied with or without internal metal core.   Our elbow connector has been designed in order to connect 2 rectangular tubes. It is supplied with or without internal metal core.
