Our adjustable foot can be used with our trimming cover LRS (black or chromed) for the M8 parts. Some parts are available with a steel base.

Material: PA6 - S
Standard colors: Black / RAL colors manufactured
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Metric Thread (M)
L
H
D / SW
Usable Thread
h
Suitable finishing part LRS
With Steel Base

PDF
3D IGS
Add
00301200414 M8 20,00 8,90 25,00 / 19,00 17,90 4,60
00301200422 M8 20,00 9,00 30,00 / 24,00 15,70 4,50
00301201439 M8 20,00 11,30 34,00 / 24,00 15,70 4,50
00301200415 M8 30,00 8,90 25,00 / 19,00 25,70 4,60
00301200423 M8 30,00 9,00 30,00 / 24,00 26,60 4,50
00301201440 M8 30,00 11,30 34,00 / 24,00 26,60 4,50
00301200416 M8 40,00 8,90 25,00 / 19,00 35,80 4,60
00301200424 M8 40,00 9,00 34,00 / 24,00 36,60 4,50
00301200417 M8 50,00 8,90 25,00 / 19,00 45,80 4,60
00301200425 M8 50,00 9,00 30,00 / 24,00 45,20 4,50
00301200418 M10 20,00 8,70 25,00 / 19,00 16,90 5,00
00301200426 M10 20,00 9,00 30,00 / 24,00 17,00 4,50
00301201441 M10 20,00 11,30 34,00 / 24,00 17,00 4,50
00301200419 M10 30,00 8,70 25,00 / 19,00 25,20 5,00
00301200427 M10 30,00 9,00 30,00 / 24,00 24,80 4,50
00301201442 M10 30,00 11,30 34,00 / 24,00 24,80 4,50
00301200420 M10 40,00 8,70 25,00 / 19,00 34,50 5,00
00301200428 M10 40,00 9,00 30,00 / 24,00 34,40 4,50
00301200421 M10 50,00 8,70 25,00 / 19,00 45,20 5,00
00301200429 M10 50,00 9,00 30,00 / 24,00 45,10 4,50

If you are interested in our family LKL, you may be interested in these families as well:

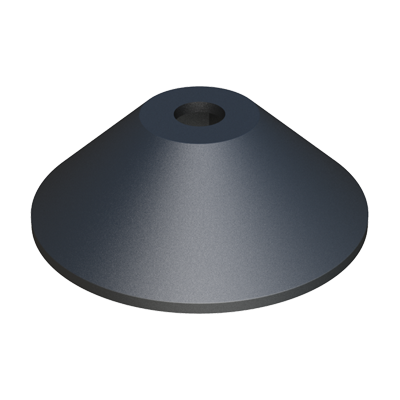

Our trimming cover has been designed to fit our adjustable feet LKL in M8 metrics.
