Description and features
Our adjustable foot has been designed to be at the same time a tube insert as well as an adjustable height. Once the foot is placed inside the tube, it permits to raise/lower the element (table) moving its base, this would only move the part of the foot which is inside the tube.Product images and technical drawings

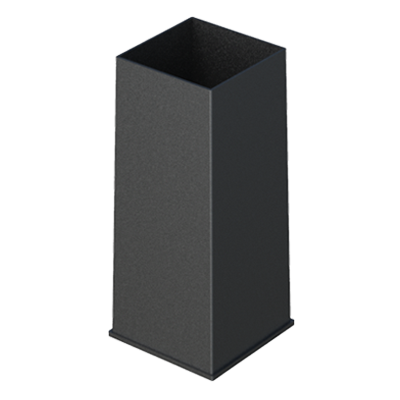

Product view
Technical drawing
Video
Part numbers and dimensions of Adjustable foot for square tubes
| Reference | For Tube (DxD) |
Tube Thickness (G) |
L1 |
SW |
H |
Suitable for Range |
More Info. |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02500100307 | 50 x 50 | 1,50 | 37,00 | 53,00 | 7,00 | AKEAB | |||||||
| 02500100308 | 50 x 50 | 1,50 | 115,00 | 53,00 | 7,00 | AKEAB | |||||||
| 02500100309 | 60 x 60 | 1,50 | 37,00 | 63,00 | 7,00 | · | |||||||
| 02500100310 | 60 x 60 | 1,50 | 115,00 | 63,00 | 7,00 | · |
