Our adjustable foot has been designed to be at the same time a tube insert as well as an adjustable height.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

AKEAC
AKEAC

Reference
For Tube
Tube Thickness
Minimum adjustable height (H1)
Maximum adjustable height (H2)
B
H
L
Suitable for Range AKEAA



More
Info.
02301000001 40 1,50 · · 40,00 5,00 123,00
02301000002 40 2,00 · · 40,00 5,00 123,00
02500100301 50 1,50 15,00 120,00 53,00 5,00 132,00
02500100302 50 1,50 15,00 170,00 53,00 5,00 178,00
02500100303 53 3,00 16,00 45,00 53,00 7,00 54,00
02500100304 60 1,50 15,00 120,00 63,00 5,00 132,00
02500100305 60 1,50 15,00 170,00 63,00 5,00 178,00
02500100306 63 3,00 16,00 45,00 63,00 7,00 54,00

If you are interested in our family AKEAC, you may be interested in these families as well:

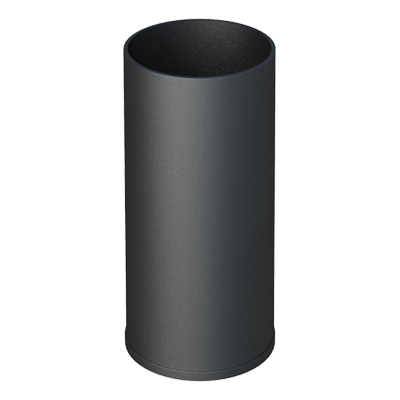

Our trimming cover for round tubes has been designed to suit our family AKEAC.
