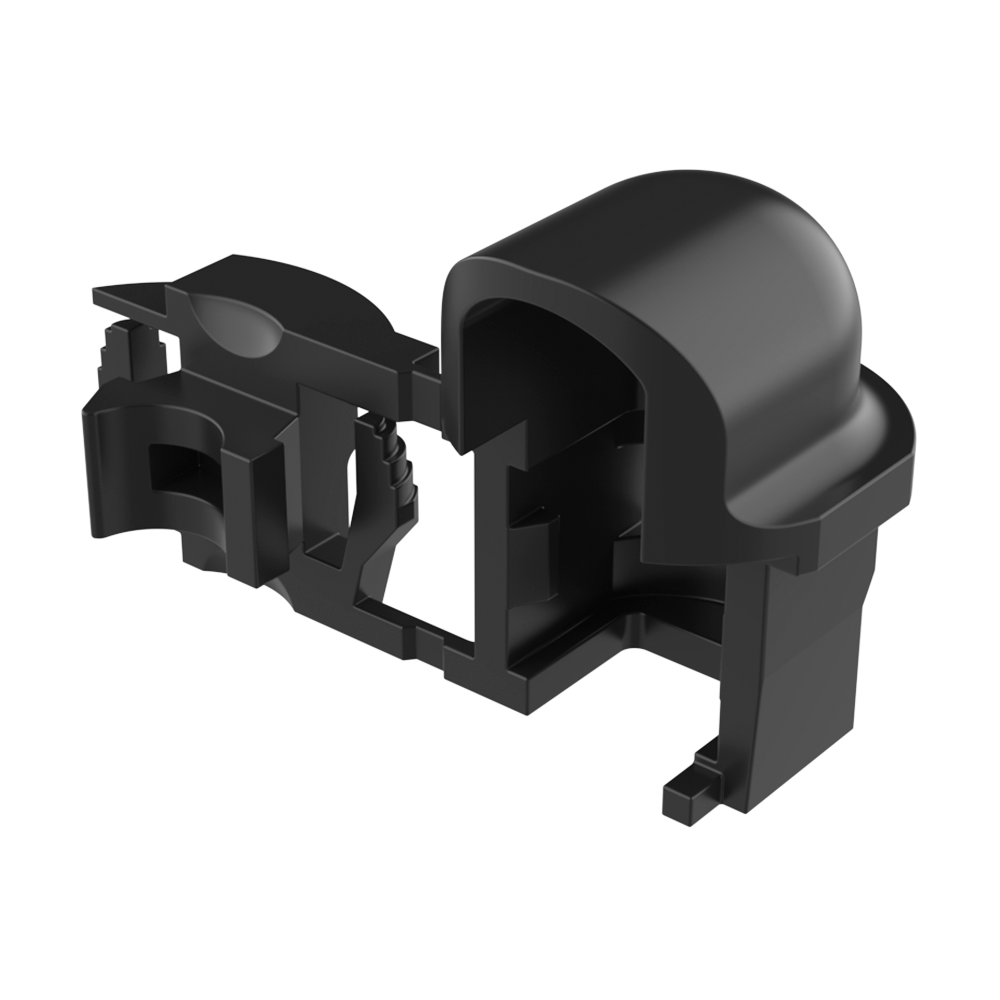

Our MPRZB cable retention bushings are designed for 90° cable routing and allow pre-assembly onto the cable with a snap-lock mechanism before final installation. They provide effective mechanical and electrical protection by absorbing pulling, pushing and twisting forces applied to the cable.
The 90° design keeps the cable parallel to the mounting surface, optimising available space and acting as a bumper in confined installations. Available for both round and flat cables.

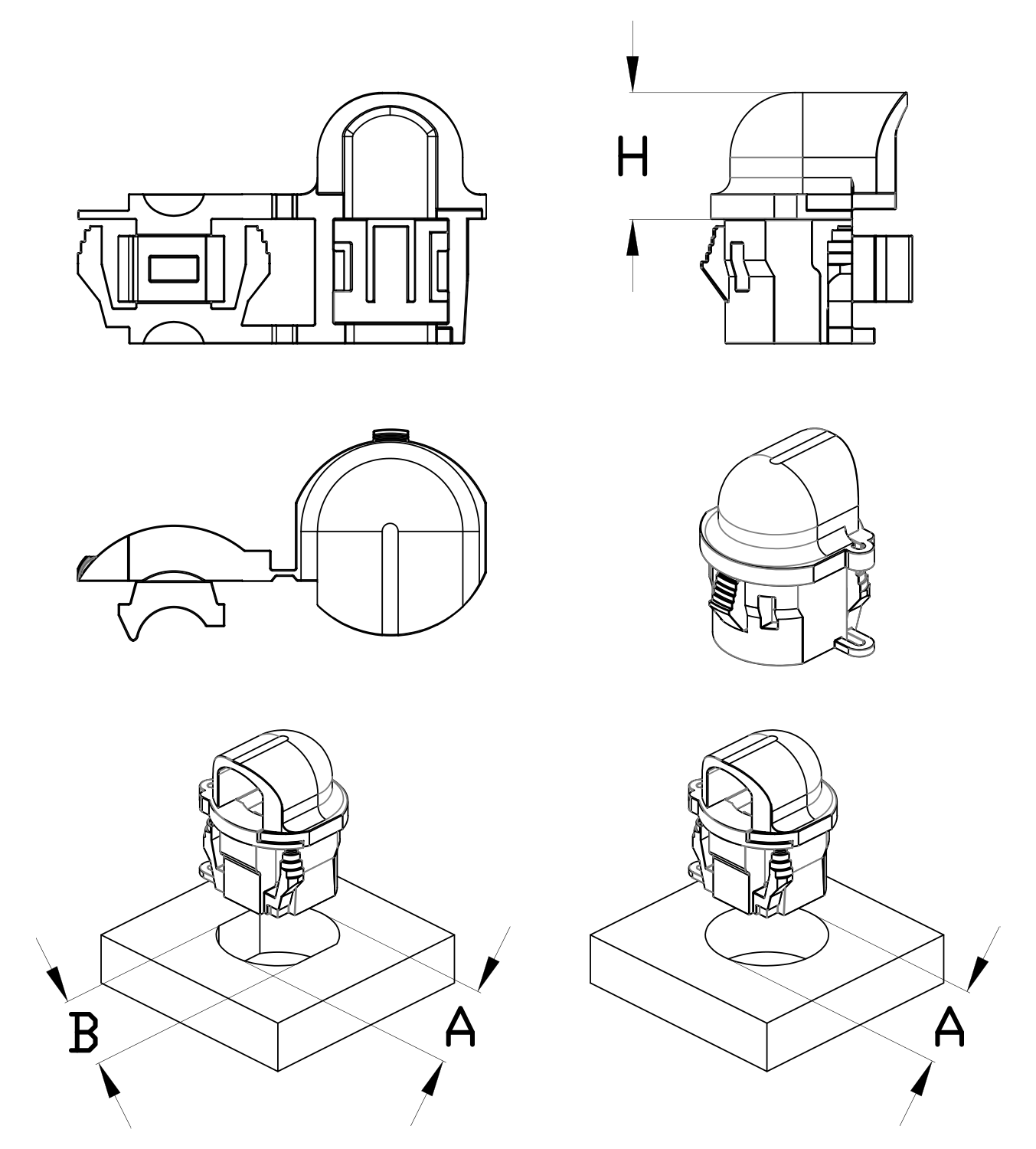

The system can be installed in two mounting hole types associated with this installation system:
· A: the hole allows the part to rotate.
· A × B: the part is locked into the hole, preventing rotation.
· Material: PA66 (Polyamide 66)
· Colour: Black
· Operating temperature: -18 °C to +105 °C
· Flammability: UL94-V2 self-extinguishing
· Certifications: UR, CSA
Available in white or other colours on request for production quantities.
