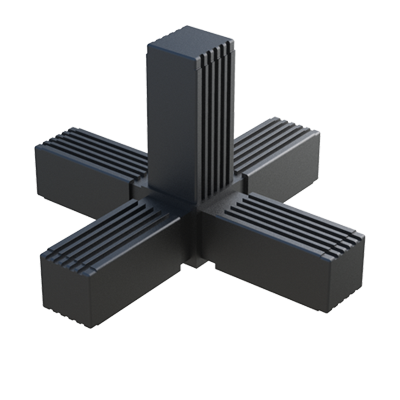

Our 5-way connector has been designed for square tubes.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

THCAK
THCAK

Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400229 13,50 x 13,50 1,25 20,00 13,00
02300900178 20 x 20 1,50 32,00 20,00
02300400230 25 x 25 1,50 49,00 25,00
02300900179 25 x 25 2,00 40,00 25,00
02300900165 30 x 30 1,50 50,00 30,00
02300900172 40 x 40 2,00 55,00 40,00

If you are interested in our family THCAK, you may be interested in these families as well:

Our 5-way connector has been designed for square tubes. It is supplied without internal metal core or with the internal core in steel, stainless steel, or in zinc coated steel.   Our square ribbed tube insert has been designed for getting a good finishing part. It is also available for rectangular tubes: LFS.   Our 6-way connector has been designed for square tubes. It is supplied without internal core, or with an internal core in steel, stainless steel 1.4301 (AISI 304) or in zinc coated steel.   LE end caps are designed to ensure <b>secure fastening</b>, <b>easy assembly</b>, and a <b>high-quality finish</b> thanks to the rounded shape of their head. They are used to seal tubes and/or various openings that must withstand mechanical stress and are <b><i>recommended as end caps for chairs and/or furniture</b></i>. <br> For use as sliding stoppers and to facilitate easy assembly in tubes with thicker walls, we recommend chamfering the tube's inner diameter (approx. 0.3 - 0.5 x 60°). <br> <b>Special colors</b>, <b>company logos</b>, and production using <b>TPE material</b> (non-slip, sound-reducing, and resistant to a wider temperature range) are available upon request—please contact us. <br> Due to technical production reasons, a residual gate may exceed the L dimension. Depending on the selected item, the surface finish may vary between polished and textured. <br>
