Our hinge 3-way connector has been designed in order to connect square tubes. It has an angle which goes from 60º to 300º.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L / H
Angle (A) [Type]
Nut Spot (SW) / Metric (M)



More
Info.
02300400060 25 x 25 1,50 50,00 / 41,00 60º to 300º [1] SW 13

If you are interested in our family THCYH, you may be interested in these families as well:

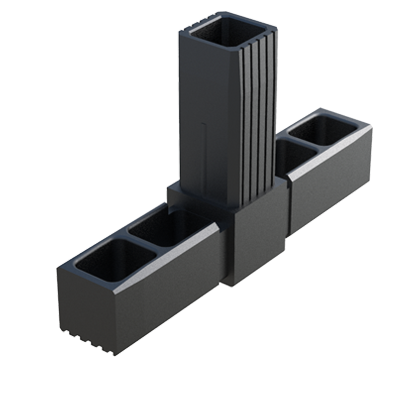

Our hinge 3-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 0º to 180º, or from 0º to 60º, or from 45º to 195º, depending on the reference.   Our T connector has been designed in order to connect 3 square tubes. It is supplied without internal metal core.   Our hinge 3-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 45º to 200º, depending on the reference.   Our connector for square tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.
