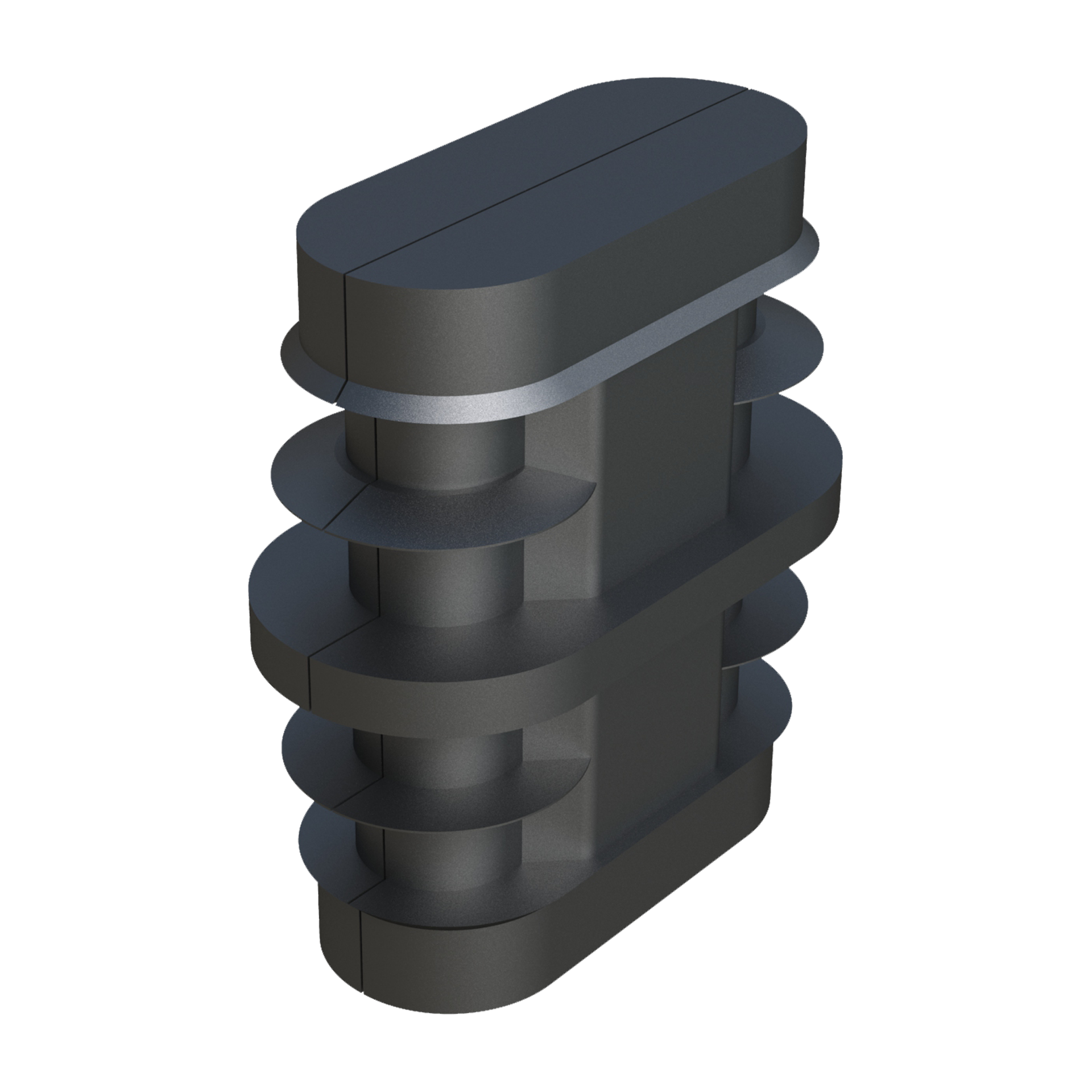

Our straight connector has been designed in order to connect 2 oval tubes. It is supplied with or without internal metal core.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400240 40 x 20 1,50 37,00 5,00
02300400261 40 x 20 2,00 35,00 5,00

If you are interested in our family SOAAD, you may be interested in these families as well:

Our straight connector has been designed in order to connect 2 oval tubes.   Our ribbed insert with steel base (NOT stainless) is for oval tubes, but we also have it available for square tubes: TGLMC, for round tubes: TGLM, and for rectangular tubes: TGLMX.
