2 tubes straight connector with a cavity for metal core and invisible union THCID


Description and features

Our straight connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core or with an internal steel core.

Technical documentation and compliance

  • Drawing PDF
  • UL94
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

2 tubes straight connector with a cavity for metal core and invisible union THCID - Product view

Technical drawing

2 tubes straight connector with a cavity for metal core and invisible union THCID - Technical drawing

Video


Part numbers and dimensions of 2 tubes straight connector with a cavity for metal core and invisible union

Reference
For Tube
Tube Thickness
L
Type



More
Info.
02300400120 30 x 30 1,50 61,00 A
02300400121 30 x 30 2,00 60,00 B

If you are interested in our family THCID, you may be interested in these families as well:

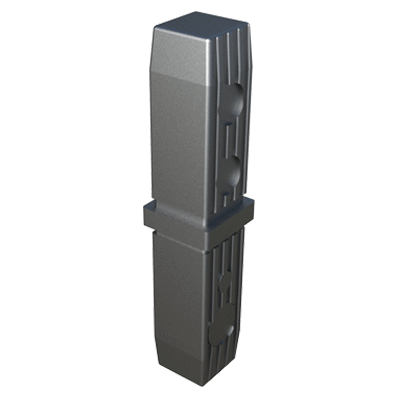

2 tubes straight connector with a cavity for metal core and visible union THCIA   2 tubes straight connector with visible union THCII
