Our hinge 2-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or which goes from 45º to 195º, depending on the reference.
*Item 02300400165 is supplied unassembled.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

THCLQ
THCLQ

Reference
For Tube
Tube Thickness
L
Angle (A) [Type]
Nut Spot (SW) / Metric (M)



More
Info.
02300400172 20 x 20 1,50 35,00 0º to 190º [1] SW 10
02300400174 25 x 25 1,50 38,00 0º to 190º [1] SW 13
02300400173 25 x 25 1,50 38,00 45º to 195º [2] SW 13
02300400164 30 x 30 2,00 41,00 0º to 190º [1] SW 17
02300400165 30 x 30 2,00 41,00 0º to 190º [1] SW 17 (DIN 985)
02300400163 30 x 30 2,00 41,00 45º to 200º [1] SW 13

If you are interested in our family THCLQ, you may be interested in these families as well:

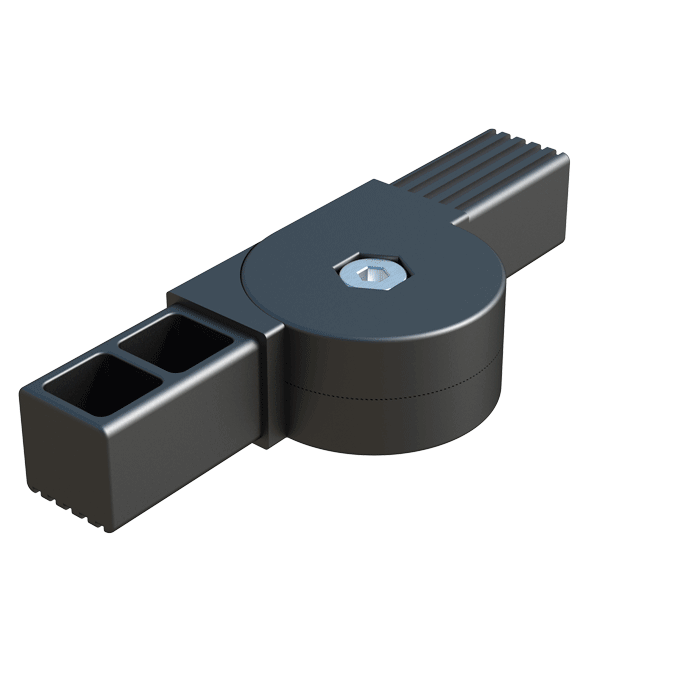

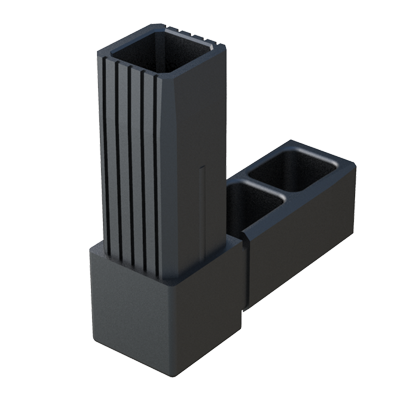

Our elbow connector has been designed for square tubes. It is supplied without internal metal core.   The THCLP <b>articulated</b> connector has been designed to connect <b>2 square tubes</b>. The <b>articulation range</b>, as well as the type of rotation and locking, vary between each reference and can be consulted in the <b>'Angle' column</b>. <br> The <b>Nylon</b> (PA6) used is highly resistant and is characterized by a very long life and great resistance to aging. According to the reference, they have a <b>fiberglass reinforcement</b> which provides greater rigidity, dimensional and thermal stability. <br><br> * <i><b>Type 1</b></i>: Free rotation movement. <br> * <i><b>Type 2</b></i>: Rotation movement with 15º internal teeth. <br> * <i><b>Type 3</b></i>: Rotational movement with internal stop at 0º, 90º, 180º positions. <br> * <i><b>Type 4</b></i>: Rotational movement with a stop at 180º. <br><br> Please consult our sales office if the measurement or any other product specification is not within our standard program.<br>   Our elbow connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core. This connector has a rounded external part which gives a good finish.   Our hinge 4-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 0º to 180º, depending on the reference.
