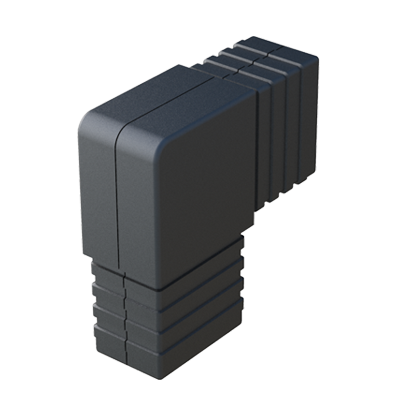

Our elbow connector has been designed in order to connect 2 rectangular tubes. It is supplied with or without internal metal core.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L



More
Info.
02300400203 30 x 20 2,00 40,00

If you are interested in our family SRAAH, you may be interested in these families as well:

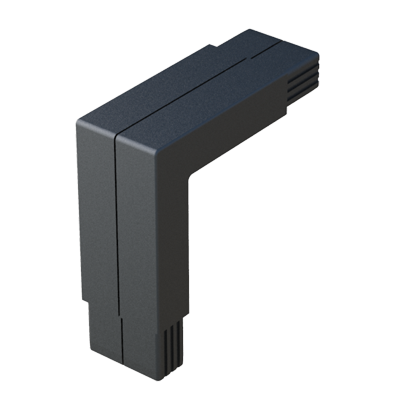

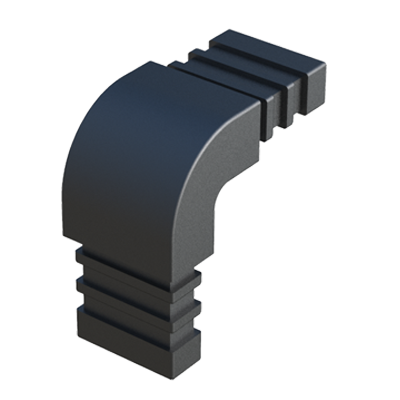

Our rectangular ribbed tube insert has been designed for getting a good finishing part. It is also available for square tubes: LES.   Our elbow connector has been designed in order to connect 2 rectangular tubes. It is supplied with or without internal metal core.   Our elbow connector has been designed in order to connect 2 rectangular tubes. This connector has a small rounded external part which gives a good finish.   Our elbow connector has been designed in order to connect 2 rectangular tubes.
