2 tubes angle connector with nut cavities and visible union THCLV

Description and features

Our connector has been designed for square tubes. It has a 135º angle.

Technical documentation and compliance

Drawing PDF
UL94
IP
RoHS
Measures expressed inMillimeters
Video

Product images and technical drawings

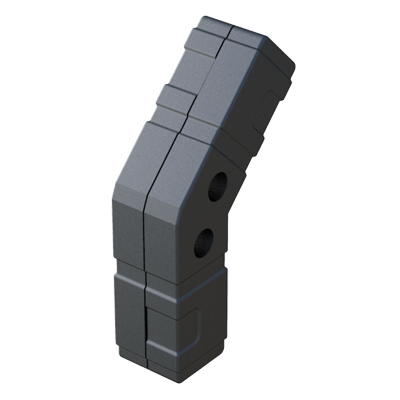

Product view

2 tubes angle connector with nut cavities and visible union THCLV - Product view

Technical drawing

2 tubes angle connector with nut cavities and visible union THCLV - Technical drawing

Video

Part numbers and dimensions of 2 tubes angle connector with nut cavities and visible union

Reference	For Tube	Tube Thickness	L	Angle (A)	Nut Spot (SW) / Metric (M)								More Info.

25 x 25

1,50

31,00

135°

SW 13
