The TUAB washers (according to DIN 34815 (DIN 125), DIN 34816 (DIN 9021) and DIN 433) are manufactured in different engineered materials that favor properties such as chemical, mechanical, oxidation resistance, etc. They are available in PP -Polypropylene-, POM -Acetal Resin-, PVDF -Polyvinylidene Fluoride-, PEEK -Polietereterketone- and PAGF -Nylon with the possibility of up to 50% fiberglass-.
Contact us for further information and to check the availability of the references of your interest in the indicated materials.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


 Filter by measurements
B Margen +/-
A Margen +/-
T Margen +/-



Reference
B
A
T
Metric
DIN



More
Info.
03100200100 1,70 4,00 0,30 M1,6 DIN125
03100200101 1,80 4,50 0,30 M1,7 DIN125
03100200102 2,20 4,50 0,30 M2 DIN433
03100200103 2,20 5,00 0,30 M2 DIN125
03100200104 2,50 6,00 0,50 M2,3 DIN125
03800200842 2,65 5,60 0,80 M2,5
03100200105 2,70 5,00 0,50 M2,5 DIN433
03100200106 2,70 6,00 0,50 M2,5 DIN125
03100200107 2,70 6,50 0,50 M2,5 DIN125
03100200108 2,70 8,00 0,80 M2,5 DIN9021
03100200109 2,80 7,00 0,50 M2,6 DIN125
03100200110 3,20 6,00 0,50 M3 DIN433
03100200111 3,20 7,00 0,50 M3 DIN125
03800200843 3,20 8,00 0,80 M3
03100200112 3,20 9,00 0,80 M3 DIN9021
03100200113 3,70 7,00 0,50 M3,5 DIN433
03100200114 3,70 8,00 0,50 M3,5 DIN125
03100200115 3,70 11,00 0,80 M3,5 DIN9021
03100200116 4,30 8,00 0,50 M4 DIN433
03100200117 4,30 9,00 0,80 M4 DIN125
03100200118 4,30 12,00 1,00 M4 DIN9021
03100200119 5,30 9,50 1,00 M5 DIN433
03100200120 5,30 10,00 1,00 M5 DIN125
03100200121 5,30 15,00 1,20 M5 DIN9021
03800200823 5,30 15,00 1,50 M5 DIN9021
03100200122 6,40 11,00 1,50 M6 DIN433
03100200123 6,40 12,00 1,60 M6 DIN125
03800200844 6,40 12,50 1,60 M6
03800200830 6,40 14,00 1,60 M6
03100200124 6,40 18,00 1,60 M6 DIN9021
03800200824 6,40 19,00 1,50 M6 DIN9021
03100200125 7,40 14,00 1,60 M7 DIN125
03100200126 7,40 22,00 2,00 M7 DIN9021
03100200127 8,40 15,00 1,60 M8 DIN433
03100200128 8,40 16,00 1,60 M8 DIN125
03800200808 8,40 17,00 1,60 M8 DIN125
03800200831 8,40 21,00 2,00 M8
03100200129 8,40 24,00 2,00 M8 DIN9021
03800200825 8,40 25,00 2,00 M8 DIN9021
03100200130 10,50 18,00 1,60 M10 DIN433
03100200131 10,50 20,00 2,00 M10 DIN125
03800200809 10,50 21,00 2,00 M10 DIN125
03800200832 10,50 24,00 2,00 M10
03100200132 10,50 30,00 2,50 M10 DIN9021
03100200133 13,00 20,00 2,00 M12 DIN433
03100200134 13,00 24,00 2,50 M12 DIN125
03800200833 13,00 28,00 2,50 M12
03100200135 13,00 37,00 3,00 M12 DIN9021
03800200827 13,00 40,00 3,00 M12 DIN9021
03100200136 15,00 24,00 2,00 M14 DIN433
03100200137 15,00 28,00 2,50 M14 DIN125
03800200811 15,00 30,00 3,00 M14 DIN125
03100200138 15,00 44,00 3,00 M14 DIN9021
03100200139 17,00 27,00 2,00 M16 DIN433
03100200140 17,00 30,00 3,00 M16 DIN125
03800200834 17,00 32,00 3,00 M16
03100200141 17,00 50,00 3,00 M16 DIN9021
03100200142 19,00 30,00 2,50 M18 DIN433
03100200143 19,00 34,00 3,00 M18 DIN125
03100200144 20,00 56,00 4,00 M18 DIN9021
03100200145 21,00 34,00 3,00 M20 DIN433
03100200146 21,00 37,00 3,00 M20 DIN125
03800200835 21,00 39,00 3,00 M20
03100200147 22,00 60,00 4,00 M20 DIN9021
03100200148 23,00 39,00 3,00 M22 DIN125
03100200149 25,00 44,00 4,00 M24 DIN125
03800200836 25,00 50,00 4,00 M24
03100200150 26,00 72,00 6,00 M24 DIN9021
03100200151 27,00 50,00 4,00 M26 DIN125
03100200152 28,00 50,00 4,00 M27 DIN125
03800200837 28,00 56,00 4,00 M27
03100200153 29,00 50,00 4,00 M28 DIN125
03100200154 31,00 56,00 4,00 M30 DIN125
03800200838 31,00 60,00 4,00 M30
03100200155 33,00 60,00 5,00 M32 DIN125
03100200156 34,00 60,00 5,00 M33 DIN125
03800200839 34,00 66,00 5,00 M33
03100200157 36,00 66,00 5,00 M35 DIN125
03100200158 37,00 66,00 5,00 M36 DIN125
03800200840 37,00 72,00 5,00 M36
03100200159 39,00 72,00 6,00 M38 DIN125
03800200841 39,00 77,00 6,00 M39
03100200160 40,00 72,00 6,00 M39 DIN125
03100200161 41,00 72,00 6,00 M40 DIN125

If you are interested in our family TUAB, you may be interested in these families as well:

The MDIN hexagonal nuts (conformable with DIN 34814 - former DIN 934/555) are manufactured in different <b>engineered materials</b> that favor properties such as <i>chemical, mechanical, oxidation resistance, etc.</i> They are available in <b>PP</b> -Polypropylene-, <b>POM</b> -Acetal Resin-, <b>PVDF</b> -Polyvinylidene Fluoride-, <b>PEEK</b> -Polietereterketone- and <b>PAGF</b> -<i>Nylon with the possibility of up to 50% fiberglass-</i>.
<br>

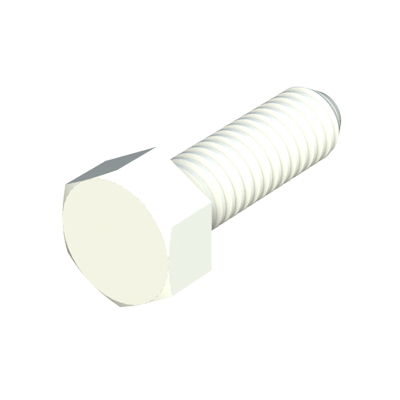

Contact us for further information and to check the availability of the references of your interest in the indicated materials.   The ALLA hexagonal screw nuts (conformable with DIN 34810 - former DIN 933) are manufactured in different <b>engineered materials</b> that favor properties such as <i>chemical, mechanical, oxidation resistance, etc.</i> They are available in <b>PP</b> -Polypropylene-, <b>POM</b> -Acetal Resin-, <b>PVDF</b> -Polyvinylidene Fluoride-, <b>PEEK</b> -Polietereterketone- and <b>PAGF</b> -<i>Nylon with the possibility of up to 50% fiberglass-</i>.
