Our in-line filters are designed for removal of most visible particulate in aqueous solutions and gas streams. Our in-line filters are precision molded with "Premium Grade" technology, meaning every barb on an in-line filter is manufactured without a parting line on the sealing surface of the barb to ensure a leak-proof seal every time. The working pressures are up to 150 P.S.I.

Material: PC - PA66 - PP - HDPE4903 - HDPE4913 - SS100 - SS200
Standard colors: Transparent - Natural
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
C
D
A
B
L

PDF
3D IGS
Add
00500501100 3,18 4,45 2,03 19,05 30,96
00500501101 4,78 6,35 3,18 19,05 41,28
00500501102 6,35 8,89 3,18 19,05 41,28
00500501103 9,53 11,81 4,78 19,05 46,70

If you are interested in our family MF, you may be interested in these families as well:

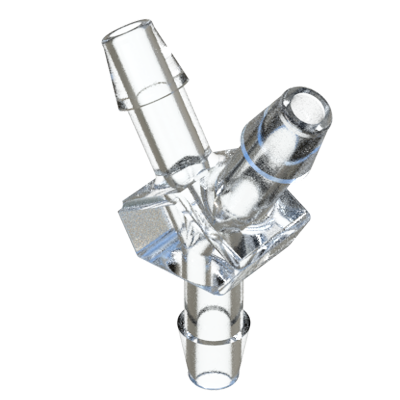

Our barbed Y connectors resist working pressures up to 125 PSI, without clamps or ties. Every barb on our parts is manufactured without a parting line on the sealing surface of the barb to ensure a leak-proof seal every time.   Our fittings do not require special tools or ferrules for fitting insertion. They provide a leak-proof seal with pressure up to 125 PSI without the use of clamps or ties.
