The MRMHM snap rivet is designed as a solution for assemblies that require quick fasteners. It can be installed without any tools: to do so, simply position it in the hole and press it. Its oversized head makes installation easy and the legs expand to lock the components permanently in place.

Some rivets are offered in the following combinations and features:

Materials: PA6, PA66 and PA46 (heat resistant).
UL 94 Standard: V0 and V2.
Colours: black, white, bronze, as well as special colors upon request.


Drawing PDF:
UL94:   V2 - V0
IP:
RoHS:
Measures expressed in: Millimeters

MRMHM
MRMHM

 Filter by measurements
Hole size Margen +/-
Panel thickness Margen +/-
D Margen +/-



Reference
Hole size
Panel thickness
D
L
H
d
Type



More
Info.
00100300537 2,10 to 2,20 0,60 to 1,20 4,20 2,29 1,20 1,90 1
01300100530 2,10 to 2,20 0,60 to 1,20 4,20 2,40 1,20 2,00 1
01300100531 2,10 to 2,20 1,30 to 2,00 4,20 3,20 1,20 2,00 1
00100300538 2,10 to 2,20 1,30 to 2,00 4,20 3,30 1,20 1,90 1
00100300539 2,10 to 2,20 2,10 to 2,80 4,15 4,10 1,20 2,00 1
01300100532 2,10 to 2,20 2,10 to 2,80 4,20 4,00 1,20 2,00 1
01300100533 2,10 to 2,20 2,90 to 3,60 4,20 4,80 1,20 2,00 1
00100300540 2,10 to 2,20 2,90 to 3,60 4,20 4,83 1,20 1,90 1
01300100534 2,10 to 2,20 3,70 to 4,40 4,20 5,60 1,20 2,00 1
00100300597 2,10 to 2,20 3,80 to 4,80 4,20 5,60 1,20 1,90 1
00100300541 2,10 to 2,20 4,40 to 5,00 4,20 6,35 1,20 1,90 1
01300100535 2,10 to 2,20 4,40 to 5,20 4,20 6,40 1,20 2,00 1
00100300730 2,11 to 2,21 5,21 to 5,72 4,19 7,50 1,20 1,93 1
00100300542 2,60 to 2,70 1,00 to 2,00 5,00 3,30 1,40 2,50 1
00100300543 2,60 to 2,70 2,70 to 3,60 5,00 4,83 1,40 2,50 1
00100300544 2,60 to 2,70 3,40 to 4,30 3,70 5,60 0,70 2,50 1
00100300591 2,60 to 2,70 3,60 to 5,00 5,00 6,30 1,40 2,50 1
00100300592 2,60 to 2,70 4,30 to 5,80 5,00 7,10 1,40 2,50 1
01300100536 2,70 to 2,80 1,00 to 2,00 5,00 3,20 1,40 2,60 1
01300100537 2,70 to 2,80 2,00 to 3,00 5,00 4,20 1,40 2,60 1
03500100998 2,70 to 2,80 2,00 to 3,00 5,00 4,20 1,40 2,60 1
00100300276 2,70 to 2,80 2,00 to 3,00 5,10 4,30 1,70 2,60 2
01300100538 2,70 to 2,80 2,70 to 3,60 5,00 4,80 1,40 2,60 1
00100300530 2,70 to 2,80 3,10 to 3,90 5,20 5,20 1,60 2,65 2
01300100539 2,70 to 2,80 3,40 to 4,30 5,00 5,50 1,40 2,60 1
01300100540 2,70 to 2,80 4,30 to 5,20 5,00 6,40 1,40 2,60 1
01300100541 2,70 to 2,80 5,10 to 6,00 5,00 7,20 1,40 2,60 1
00100300593 3,00 to 3,20 5,00 to 6,00 6,40 7,60 1,60 3,00 1
01300100542 3,10 to 3,20 1,00 to 2,00 6,40 3,50 1,60 3,00 1
00100300271 3,10 to 3,20 1,30 to 2,50 6,40 3,50 1,60 3,00 2
00100300545 3,10 to 3,20 1,90 to 3,00 6,20 4,65 1,50 3,00 1
01300100543 3,10 to 3,20 2,00 to 3,00 6,40 4,50 1,60 3,00 1
00100300550 3,10 to 3,20 2,00 to 3,00 6,40 4,57 1,60 3,00 1
01300100544 3,10 to 3,20 2,50 to 3,50 6,40 5,00 1,60 3,00 1
01300100545 3,10 to 3,20 3,00 to 4,00 6,40 5,50 1,60 3,00 1
01300100546 3,10 to 3,20 4,00 to 5,00 6,40 6,50 1,60 3,00 1
00100300546 3,10 to 3,20 4,00 to 5,00 6,40 6,60 1,60 3,00 1
01300100547 3,10 to 3,20 5,00 to 6,00 6,40 7,50 1,60 3,00 1
00100300547 3,10 to 3,20 5,50 to 6,50 6,40 7,87 1,60 3,00 1
01300100548 3,10 to 3,20 5,50 to 6,50 6,40 8,00 1,60 3,00 1
00100300548 3,10 to 3,20 6,50 to 7,50 6,40 8,90 1,60 3,00 1
01300100549 3,10 to 3,20 6,50 to 7,50 6,40 9,00 1,60 3,00 1
00100300549 3,10 to 3,20 7,50 to 8,50 6,40 9,91 1,60 3,00 1
01300100550 3,10 to 3,20 7,50 to 8,50 6,40 10,00 1,60 3,00 1
00100300281 3,10 to 3,20 10,20 to 11,20 6,40 13,20 1,70 3,00 3
01300100551 3,10 to 3,20 11,50 to 13,00 6,40 14,50 1,60 3,00 1
01300100552 3,10 to 3,20 20,50 to 21,50 6,40 23,00 1,60 3,00 1
00100300272 3,20 to 3,30 3,00 to 4,00 6,30 5,50 1,60 3,00 1
00100300284 3,50 to 3,60 1,50 to 3,00 6,40 4,60 1,50 3,40 2
00100300277 3,50 to 3,60 3,00 to 4,00 6,40 5,60 1,50 3,40 2
01300100553 3,60 to 3,70 1,20 to 2,10 6,40 3,50 1,60 3,50 2
00100300551 3,60 to 3,70 1,20 to 2,10 6,40 3,56 1,60 3,40 2
00100300552 3,60 to 3,70 2,10 to 3,00 6,40 4,32 1,60 3,40 2
01300100554 3,60 to 3,70 2,10 to 3,00 6,40 4,50 1,60 3,50 2
01300100555 3,60 to 3,70 2,70 to 3,60 6,40 5,00 1,60 3,50 2
00100300553 3,60 to 3,70 2,70 to 3,60 6,40 5,08 1,60 3,40 2
01300100556 3,60 to 3,70 3,00 to 4,00 6,40 5,50 1,60 3,50 2
01300100557 3,60 to 3,70 3,70 to 4,60 6,40 6,00 1,60 3,50 2
00100300554 3,60 to 3,70 3,70 to 4,60 6,40 6,10 1,60 3,40 2
01300100558 3,60 to 3,70 4,50 to 5,50 6,40 7,00 1,60 3,50 2
00100300555 3,60 to 3,70 4,50 to 5,50 6,40 7,11 1,60 3,40 2
00100300556 3,60 to 3,70 5,50 to 6,50 6,40 7,87 1,60 3,40 2
01300100559 3,60 to 3,70 5,50 to 6,50 6,40 8,00 1,60 3,50 2
00100300273 4,00 to 4,10 2,50 to 3,50 8,00 5,00 2,00 3,90 1
00100300274 4,00 to 4,10 3,50 to 4,50 8,00 6,00 1,90 3,90 1
00100300279 4,10 to 4,20 1,20 to 4,50 9,50 5,90 2,00 4,00 1
01300100560 4,10 to 4,20 1,70 to 2,50 8,00 4,00 1,80 4,00 2
01300100561 4,10 to 4,20 2,50 to 3,50 8,00 5,00 1,80 4,00 2
03503000100 4,10 to 4,20 2,50 to 3,50 8,00 5,00 1,80 4,00 2
01300100562 4,10 to 4,20 3,00 to 4,00 8,00 5,50 1,80 4,00 2
01300100563 4,10 to 4,20 3,50 to 4,50 8,00 6,00 1,80 4,00 2
00100300278 4,10 to 4,20 3,80 to 4,80 8,00 8,00 2,10 4,00 2
01300100564 4,10 to 4,20 4,50 to 5,50 8,00 7,00 1,80 4,00 2
00100300466 4,10 to 4,20 4,50 to 5,50 8,00 7,20 2,10 4,00 2
01300100565 4,10 to 4,20 5,50 to 6,50 8,00 8,00 1,80 4,00 2
01300100566 4,10 to 4,20 6,50 to 7,50 8,00 9,00 1,80 4,00 2
00100300557 4,10 to 4,20 6,50 to 7,50 8,10 8,90 1,80 4,00 2
00100300558 4,10 to 4,20 6,50 to 8,50 8,70 9,91 1,80 4,00 2
00100300531 4,10 to 4,20 7,40 to 8,40 8,00 10,00 2,10 4,00 2
01300100567 4,10 to 4,20 7,50 to 8,50 8,00 10,00 1,80 4,00 2
00100300594 4,10 to 4,20 8,50 to 10,40 8,00 12,10 1,80 4,00 2
00100300705 4,10 to 4,20 8,90 to 10,40 8,70 11,90 1,80 4,00 2
01300100568 4,10 to 4,20 9,00 to 10,50 8,00 12,00 1,80 4,00 2
01300100569 4,10 to 4,20 12,50 to 14,00 8,00 15,50 1,80 4,00 2
00100300283 4,20 to 4,30 2,54 to 6,35 7,00 8,00 0,80 4,00 2
00100300280 4,30 to 4,40 4,30 to 5,30 8,00 6,70 2,10 4,20 1
00100300559 4,30 6,30 to 6,70 9,40 10,41 2,00 4,20 2
00100300532 4,70 to 4,88 6,35 to 11,10 9,00 13,40 2,40 4,60 2
00100300560 5,10 to 5,20 1,50 to 2,50 8,90 4,57 2,20 4,90 2
01300100570 5,10 to 5,20 1,50 to 2,50 9,00 4,50 2,20 5,00 2
00100300561 5,10 to 5,20 2,50 to 3,50 8,90 5,60 2,20 4,90 2
01300100571 5,10 to 5,20 2,50 to 3,50 9,00 5,50 2,20 5,00 2
00100300562 5,10 to 5,20 2,70 to 4,30 8,90 6,60 2,20 4,90 2
01300100572 5,10 to 5,20 3,50 to 4,50 9,00 6,50 2,20 5,00 2
01300100573 5,10 to 5,20 4,50 to 5,50 9,00 7,50 2,20 5,00 2
01300100574 5,10 to 5,20 5,50 to 6,50 9,00 8,50 2,20 5,00 2
00100300533 5,10 to 5,20 5,51to 6,50 9,00 8,38 2,10 5,00 2
00100300282 5,10 to 5,20 5,84 to 7,62 8,90 9,40 2,40 5,00 2
01300100575 5,10 to 5,20 6,50 to 7,50 9,00 9,50 2,20 5,00 2
00100300563 5,10 to 5,20 7,50 to 8,50 8,90 10,41 2,20 4,90 2
01300100576 5,10 to 5,20 7,50 to 8,50 9,00 10,50 2,20 5,00 2
00100300275 5,20 to 5,30 4,00 to 5,00 8,90 7,00 1,90 5,00 2
01300100577 5,90 to 6,00 3,00 to 4,50 12,00 6,30 2,70 5,80 2
01300100578 6,10 to 6,20 2,50 to 4,00 12,00 6,00 2,50 6,00 2
00100300565 6,10 to 6,20 2,50 to 4,00 12,10 6,00 2,50 6,00 2
00100300566 6,10 to 6,20 3,50 to 5,50 12,00 8,00 3,00 6,00 2
01300100579 6,10 to 6,20 3,50 to 5,50 12,00 8,00 3,00 6,00 2
01300100580 6,10 to 6,20 21,50 to 23,50 12,00 26,00 3,00 6,00 2
01300100581 6,10 to 6,20 23,50 to 25,50 12,00 28,50 3,00 6,00 2
00100300567 6,35 0,80 to 1,60 11,10 4,75 3,00 6,10 2
00100300568 6,35 1,60 to 3,20 11,10 6,35 3,00 6,10 2
00100300569 6,35 3,20 to 4,70 11,10 7,92 3,00 6,10 2
00100300570 6,35 4,70 to 6,30 11,10 9,53 3,00 6,10 2
00100300571 6,35 6,30 to 9,50 11,10 12,70 3,00 6,10 2

If you are interested in our family MRMHM, you may be interested in these families as well:

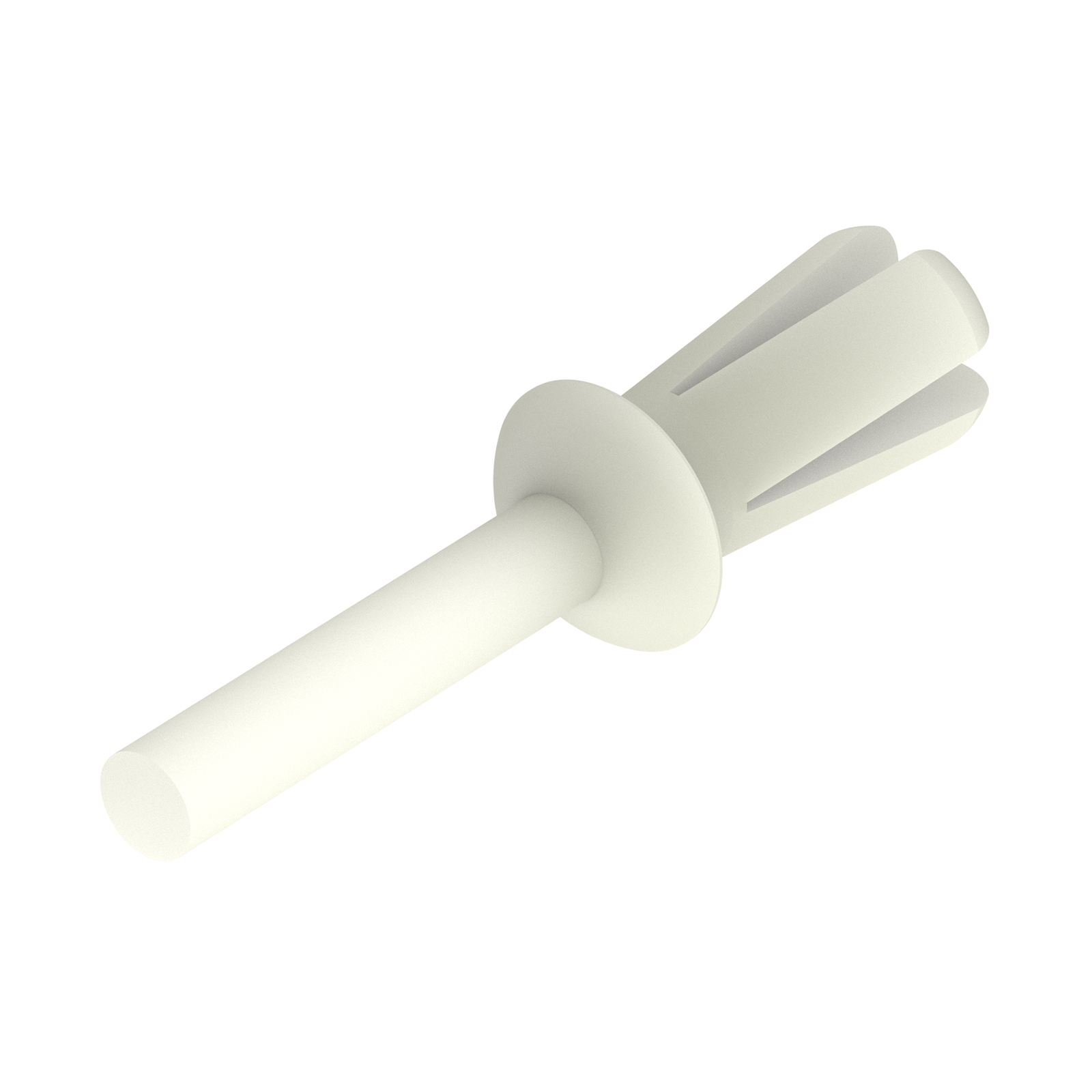

This poly drive rivet is a one-piece blind rivet that offers a fast and permanent fastener that can be used in a wide variety of materials including sheet metal, plastic sheets, fiberglass, PC boards and composites. A fast and easy installation can be made without tools from one side of the work piece. The rivet is inserted in a pre-punched hole and the drive pin is forced into the specially designed legs, with a drive rivet tool, which expand and securely locks the assembled components in place. The versatile poly rivet provides a secure joint even under extreme vibration conditions while it electrically insulates and resists corrosion and cathodic transfer. We offer to volume users 2 installation tools from the family range Miscellaneous: MHR (hand tool) or MHRZ (pneumatic), please consult us.
