These latches operate by way of a spring and cam form which provides a secure 'push to close - push to open' latching mechanism. Used in applications where doors, panels or compartments require to be accessed on regular occasions, such as automotive, electronics, HVAC, medical, point of sale, white and brown goods industries.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Housing
Panel thickness
H
h
I
C

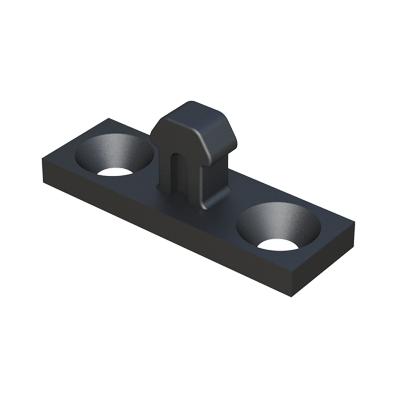

Suitable with TAZ female stand
Newton opening/closing force (± 0,58 N)



More
Info.
50001000040 10,00 x 8,00 2,00 to 2,10 12,00 3,50 8,00 10,00   4,9 N
